Will a 20 amp breaker run a well pump?

Is your well pump constantly tripping its breaker?

Worrying about an electrical issue can be stressful.

Choosing the right breaker is critical for your pump's safety and longevity.

Yes, a 20-amp breaker can run many common residential well pumps, particularly models rated at 3/4 horsepower and sometimes even 1 HP. However, this is not a universal rule. You must always confirm the pump's specific full-load amp (FLA) rating on its nameplate to ensure compliance and safety.

While a 20-amp breaker is a common size, simply installing one without checking other factors is a recipe for disaster.

The breaker is just one part of a complete electrical system designed to protect your valuable well pump motor.

An undersized breaker will trip constantly, while an oversized one can create a serious fire hazard by allowing the wiring to overheat.

To truly answer the question, we need to dive deeper into how pump motors, breakers, and wiring work together.

This guide will walk you through the essential factors, ensuring you can make an informed and safe decision for your water system.

Understanding Well Pump Breaker Sizing

Are you confused about how to match a breaker to your well pump?

Choosing incorrectly can lead to motor damage or dangerous electrical failures.

Let's demystify the process of selecting the right size.

The correct breaker size depends on the motor's Full Load Amps (FLA), found on the pump's nameplate. The National Electrical Code (NEC) allows the breaker to be sized up to 250% of the FLA to handle the motor's startup surge, preventing nuisance trips while still offering protection.

To properly size a breaker, you must look beyond just the horsepower rating.

The most critical number is the Full Load Amps (FLA).

This value tells you the maximum current the motor is designed to draw under normal operating conditions.

Why Startup Current Matters

When a pump motor first turns on, it needs a massive surge of electricity to get its components moving from a standstill.

This "inrush current" can be 300% to 600% higher than the normal running current, but it only lasts for a fraction of a second.

If the circuit breaker were sized only for the running current, it would trip every single time the pump started.

This is why electrical codes have special rules for motor circuits.

The NEC 250% Rule Explained

The National Electrical Code (NEC) in Article 430.52 provides guidelines for motor protection.

It allows an instantaneous-trip circuit breaker to be sized up to 250% of the motor's FLA rating.

This provides enough headroom to handle the startup surge without tripping, while still protecting the circuit from a true short circuit or overload.

For example, a 1 HP, 230V pump might have an FLA of around 7 amps.

Using the 250% rule: 7A × 2.5 = 17.5A.

Since 17.5A is not a standard breaker size, the code allows you to use the next standard size up, which is a 20-amp breaker.

This makes a 20-amp breaker a perfect fit for many 1 HP pumps.

Breaker Sizing Guidelines

While checking the nameplate is essential, general guidelines can help you get a preliminary idea.

The table below shows typical breaker sizes for common 230V residential pumps.

Remember, these are just guidelines.

Always default to the manufacturer's specifications for your specific pump model.

The Critical Role of Wire Sizing

Do you think the breaker is the only thing that matters?

Using wire that is too small is a hidden danger that can slowly cook your pump motor.

Protect your investment by understanding the importance of proper wire gauge.

Wire size is just as crucial as the breaker. The wire must be thick enough to carry the current safely over the entire distance to the pump without excessive voltage drop. Using a thicker wire (a lower gauge number) is a non-negotiable safety requirement, especially for deep wells.

The circuit breaker's primary job is to protect the wire.

If the wire is too small for the amount of current flowing through it, it will overheat.

This can melt the wire's insulation, creating a short circuit and a significant fire risk.

A 20-amp breaker requires, at minimum, a 12-gauge copper wire (#12 AWG).

Using thinner #14 AWG wire with a 20-amp breaker is a serious code violation and a fire hazard.

What is Voltage Drop?

Voltage drop is the loss of electrical pressure as electricity travels along a wire.

Every wire has some resistance, and the longer the wire, the more voltage is lost.

If the voltage drops too much by the time it reaches the pump motor, the motor will struggle to run.

It will try to compensate by drawing more amps, which causes it to overheat and will drastically shorten its lifespan.

A voltage drop of more than 5% is generally considered unacceptable for a well pump circuit.

For a 230V system, this means the voltage at the pump should not fall below 218.5V.

How Distance Dictates Wire Gauge

The total wire length includes the distance from your electrical panel to the wellhead, plus the depth of the pump inside the well.

A pump set 300 feet deep in a well that is 100 feet from the house requires at least 400 feet of wire.

Over such a long distance, voltage drop becomes a major concern.

To combat this, you must use a thicker wire than you would for a shorter run.

The chart below illustrates how the required wire size increases with distance for a 230V pump.

Notice how a 1 HP pump that needs #12 wire for a short run requires much thicker #8 wire for a run over 400 feet.

When in doubt, always go one size larger with your wire.

The extra cost is minimal compared to the cost of replacing a burnt-out pump motor.

Matching Voltage Requirements

Is your pump getting the correct type of power?

Supplying the wrong voltage is a fast way to burn out your motor.

Let's ensure your electrical service is a perfect match for your pump.

Most residential submersible pumps are designed for 230-volt single-phase power, which requires a double-pole circuit breaker. This is far more efficient for motors and results in less voltage drop than 115-volt systems. Always check the pump's nameplate to confirm its voltage requirement.

A double-pole breaker connects to two hot bus bars in your electrical panel.

This allows it to supply 230 or 240 volts to the pump circuit.

It also ensures that if a fault occurs, both hot legs of the circuit are disconnected simultaneously, which is a critical safety feature.

You cannot run a 230V pump on a single-pole 115V breaker.

115V vs. 230V: Why 230V is Standard

While some very small jet pumps under 1/2 HP may use 115V, nearly all submersible residential pumps use 230V.

There's a good reason for this based on Ohm's Law (Power = Voltage × Current).

A motor that needs 1400 watts of power will draw about 12.2 amps at 115 volts (1400W / 115V = 12.2A).

That same 1400-watt motor running on 230 volts will only draw about 6.1 amps (1400W / 230V = 6.1A).

This lower amperage has two major benefits:

1. Smaller Wire: Lower current allows for the use of thinner, less expensive wire.
2. Less Voltage Drop: The negative effects of voltage drop are less pronounced with lower current, making 230V much better for the long wire runs common with well pumps.

Understanding Voltage Tolerance

Pump motors are not designed to run on a precise voltage.

They are built to operate within an acceptable range, typically ±10% of their rated voltage.

For a standard 230V pump, this means it can safely operate on any voltage between 207V and 253V.

• Low Voltage (Below 207V): This is the most common problem, often caused by undersized wire. The motor will lack starting torque, run hot, and eventually fail.
• High Voltage (Above 253V): This can cause the motor's insulation to break down prematurely, leading to a short and motor failure.

The Nameplate is Your Guide

We cannot stress this enough: the pump's nameplate is the ultimate source of truth.

Before you buy a breaker, wire, or controller, locate the nameplate on the pump motor or its control box.

It will clearly state the required voltage, horsepower (HP), and Full Load Amps (FLA).

Guessing is a costly mistake.

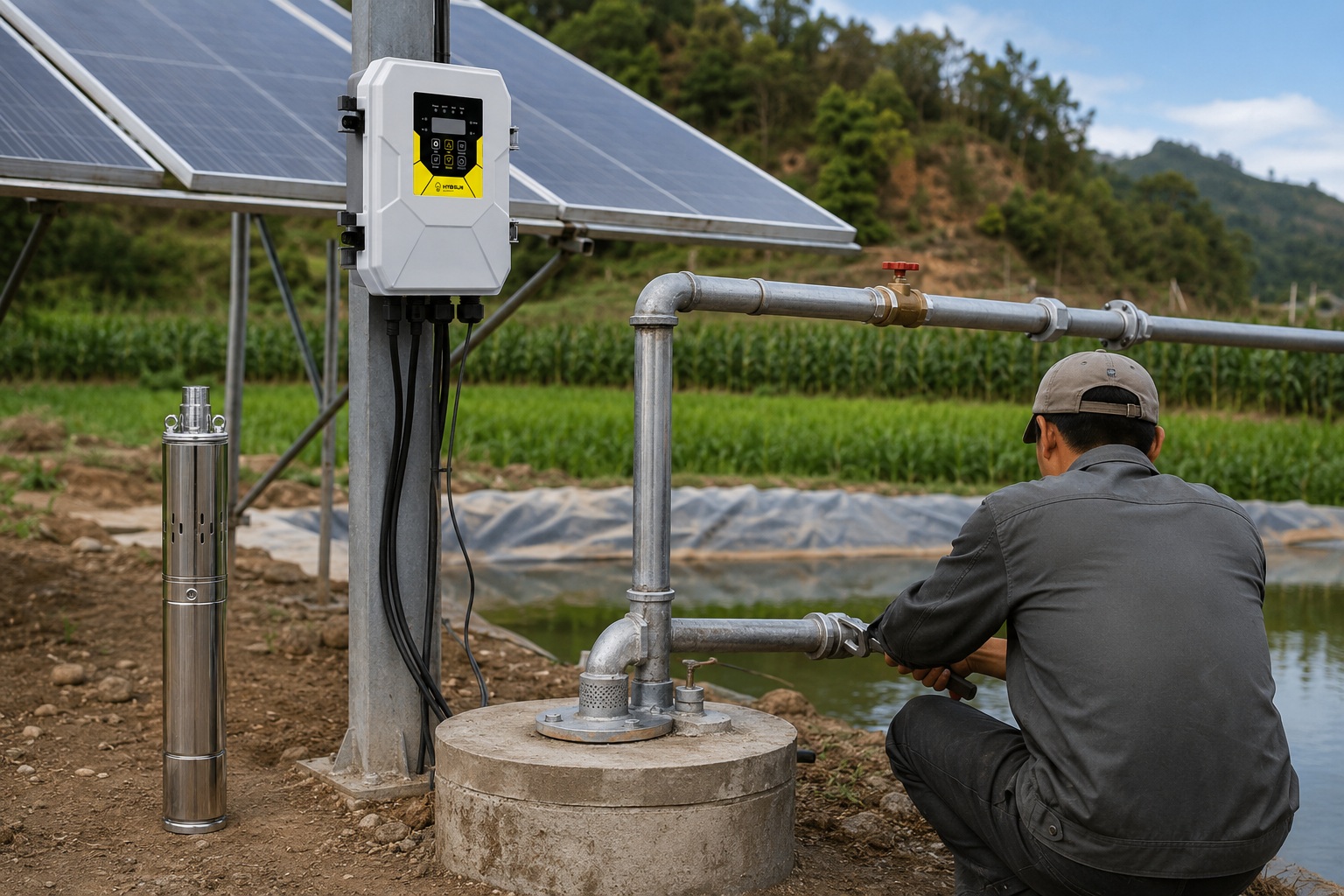

Considering Modern Pump & Motor Technology

Is your old well pump costing you a fortune in electricity?

Modern pump systems have made huge leaps in efficiency.

Exploring this new technology can save money and provide more reliable water access.

Today's advanced well pumps often use high-efficiency brushless DC (BLDC) permanent magnet motors. These motors can exceed 90% efficiency, dramatically reducing electricity consumption and the size of the generator or solar array needed to power them, offering a superior long-term value.

The basic electrical rules for breakers and wires still apply.

However, the technology that uses that electricity has changed dramatically.

Focusing only on the breaker size misses the bigger picture of overall system efficiency.

Modern pump systems are engineered to do more work with less power.

The Power of BLDC Motors

For decades, most pumps used standard AC induction motors.

Today, a superior technology is available: the Brushless DC (BLDC) permanent magnet motor.

Instead of copper windings in the rotor, they use powerful rare-earth magnets.

This design eliminates the electrical and frictional losses associated with brushes, making them far more efficient.

A high-efficiency BLDC motor can be over 90% efficient, compared to 60-70% for a traditional motor.

This means a larger portion of the electricity is converted into the useful work of pumping water.

They also produce higher torque, are significantly more compact (up to 47% smaller), and are lighter (up to 39% lighter), which simplifies installation.

Matching Pump Type to Your Needs

The motor is only half of the equation.

The "pump end" is what actually moves the water.

Different designs are optimized for specific conditions.

• Solar Screw Pumps: These use a helical rotor inside a rubber stator. They are ideal for very deep wells where high pressure (head) is needed, but the flow rate is low. They are also highly resistant to sand.
• Solar Plastic Impeller Pumps: These use a stack of centrifugal impellers to generate high flow rates at a medium head. They are a cost-effective and lightweight choice for farm irrigation and general home use.
• Solar Stainless Steel Impeller Pumps: For the ultimate in durability, these pumps use impellers made from SS304 stainless steel. They are designed for long life in corrosive or mineral-heavy water conditions.

The Role of Intelligent Controllers

Modern pump systems are paired with smart controllers.

These controllers, often called Variable Frequency Drives (VFD) or Maximum Power Point Tracking (MPPT) controllers for solar, offer huge advantages.

They provide a "soft start," gradually ramping up the motor speed.

This eliminates the massive inrush current, reducing stress on the motor, wiring, and power source.

Because the startup surge is managed, it's often possible to run these pumps on smaller generators.

Many controllers also offer hybrid functionality, automatically switching between solar panels and an AC power source (grid or generator) to ensure water is available 24/7.

Conclusion

Sizing a breaker for your well pump is a critical safety step.

It requires a holistic look at the pump's FLA rating, voltage, wire size, and total distance.

A 20-amp breaker is often suitable, but you must verify every component of the system.

Frequently Asked Questions

What happens if the wire is too small for a well pump?

Undersized wire causes voltage drop, which makes the motor overheat. This drastically shortens the pump's life and can even pose a fire risk.

Can I use a 30 amp breaker for a well pump?

Yes, if the pump requires it (typically 1.5 HP to 2 HP models) and you use a properly sized wire, which is usually a 10-gauge copper wire.

How do I know what size my well pump is?

Check the nameplate on the pump or its control box. If it's inaccessible, the original installer's invoice or the size of the existing circuit breaker can provide strong clues.

Why does my well pump breaker keep tripping?

Common causes include an undersized breaker or wire, a failing pump motor, low voltage, or a short in the wiring. A professional diagnosis is recommended.

Do well pumps need a dedicated circuit?

Yes, absolutely. The National Electrical Code requires the well pump to be on its own dedicated circuit to ensure it has sufficient power and operates safely.

Can I run a well pump on a generator?

Yes, but the generator must be sized to handle the pump's high startup current, not just its running watts. This often requires a generator rated 2-3 times the pump's running power.

Do well pumps need GFCI protection?

It depends. NEC requires GFCI for most 120V and 240V outdoor outlets. While some jurisdictions exempt deep submersible pumps, it's often required for shallow well or jet pumps.
