Solar Booster pump with wholesale price
- High Efficiency : 90 - 95%
- Protection:IP54 & IP68
- Economy:save 70-90% costs/Year
- Renewable:100% green
- Versatile Design: Household, Agriculture, Animal Husbandry
Wholesale Solar Booster pump Just in One Place - The Ultimate Solution
Efficient and Sustainable Water Solution
Table Of Contents For This Page
To make sure you can find the information you want quickly,
we have prepared this content directory that will jump to the corresponding location when you click on it.
General Application For solar Booster pumps
Serving Families
Solar booster pumps harness the power of the sun to give your home's water pressure a boost, making sure you have a steady and strong flow of water. This green solution is perfect for homes that have low water pressure, giving you better water pressure for showers, washing, and more, without increasing your energy bill.
Furrow or flood irrigation
Solar booster pumps are used in furrow or flood irrigation to increase water pressure and flow, allowing for efficient water distribution across large fields. This ensures crops get the water they need, making the irrigation process both eco-friendly and cost-effective. This is especially true in remote areas where it’s hard to get power.
Livestock
Solar booster pumps make sure animals always have enough water by using sunlight to pump water to troughs and tanks, perfect for places that are far away from everything. This green solution helps animals drink enough water and stay healthy without using a lot of power.
Top Solar Booster Pumps
Find the perfect Solar surface Pump for you; All our range comes with up to a 2-year warranty, giving you peace of mind and reliable performance.
Advantages of Solar Booster Pumps
Advantages Of The DC Controller
Excellent Waterproof Rating: Controllers are IP65 rated to ensure effective waterproofing.
Flexible Voltage Compatibility: Accommodates a wide range of open circuit voltages.
Wide Temperature Range: Works well from -15℃ to 60℃.
High Input Current: Supports up to 17A for efficient power handling.
Improved MPPT Function: Enhances solar energy utilization.
Informative LED Display: Displays important operational data.
Adaptive Speed Control: Adjusts speed based on solar availability, with manual override.
Automatic Operation: Allows for automatic starting and stopping.
Soft Start Mechanism: Extends motor life by reducing surge current.
Comprehensive Protection: Provides extensive safety against electrical and operational hazards.
Advantages of HYBSUN Solar Booster Pumps
Efficient Motor: Comes with a permanent magnet DC brushless synchronous motor for up to 20% more efficiency, energy savings, and reduced need for solar panels.
Durable Rotor Shaft: Built with a 304 stainless steel shaft to prevent breakage.
Reliable Bearings: Uses long-lasting Japanese NSK bearings.
Robust Mechanical Seal: Has an alloy mechanical seal for long-lasting durability.
High-Temperature Enameled Wire: Uses 180°C high temperature resistant copper wire.
Optimized Stator and Rotor: Made with cold-rolled 600 silicon steel for peak efficiency.
Advanced Magnet Material: Made with 40SH aluminum iron boron magnets that can resist up to 150℃.
Intelligent Water Shortage Protection: Automatically stops in dry conditions and restarts after 30 minutes.
Advantages Of The AC/DC Controller
Optimized MPPT Software: Adapts output frequency to power availability for peak efficiency.
Flexible Use: Suitable for various water systems, including irrigation, under both continuous and intermittent conditions.
Automatic Restart: Automatically resumes operation after interruptions, reducing downtime.
Intuitive Interface: Features an easy-to-use LED display with adjustable settings.
Data Tracking: Provides historical operational data for monitoring and troubleshooting.
Advanced Protection: Offers comprehensive safeguards against operational and electrical issues.
Efficient Fault Diagnosis: Facilitates quick identification and resolution of issues with error code display.
Motor Versatility: Supports both DC and AC 3-phase motors for greater adaptability.
Self-Cleaning Mechanism: Ensures system efficiency and extends lifespan.
Security Feature: Anti-theft functionality for system protection in remote areas.
IOT Capabilities: Allows for remote monitoring and control, enhancing management in distant locations.
The internal structure of HYBSUN solar Booster pump
Permanent Magnet Motor: This motor is super efficient, so it gives you more power while using less energy.
Stainless Steel Shaft: The shaft is made of 304 stainless steel so it won’t break and it’ll last a long time.
NSK Bearings: These are high-quality bearings that make the motor run smoother and more reliably.
Alloy Seal: The seal is super good so it’ll last a long time.
High-Temp Wire: The wire is copper and it’s rated for 180°C so it’s safe and it’ll last a long time.
Optimized Stator/Rotor: The stator and rotor are made of really good silicon steel so the motor is super efficient.
Advanced Magnets: The magnets are made of 40SH aluminum iron boron so they won’t melt.
Designing Your Solar-Booster pump System
1：How to Choose the Right Size surface Pump?
- Figure Out How Much Water You Need and How Much Pressure You Need: Figure out how much water you need in gallons or liters per minute and how much pressure you need to get that water where you want it to go. It depends on what you’re doing, like watering your lawn, giving your cows a drink, or making sure your family has water.
- Choose the Right Pump: Choose a pump that fits your flow and pressure requirements. For example, centrifugal pumps are good for high flow, low pressure applications, while positive displacement pumps are better for high pressure, low flow applications.
2：How to choose solar booster pump extension cable?
Solar water pump comes with 2 meters cable, which can be customized according to your actual needs. Customers can also extend the cable by themselves.
Notes for choosing cable:
1. Choose waterproof cable.
2. Choose 3-wire
3. 2.5sq cable is recommended below 50m; 4sq cable for 50m-100m; 6sq cable for 100m-200m.
3：How does a solar water pump match a solar panel?
Choose a Solar Panel
Choose a solar panel array that is at least 1.3 times the power of the water pump you plan to use to make sure it runs well. Make sure the voltage of the solar panel array matches the voltage requirements of the pump.
Example Simplified:
For a Solar Booster Pump with a 750W power requirement and optimal input voltage of 72-144V.
- Solar panel power: At least 975W (1.3 times the pump power).
- VMP voltage: Greater than 72V.
- VOC voltage: Less than 160V.

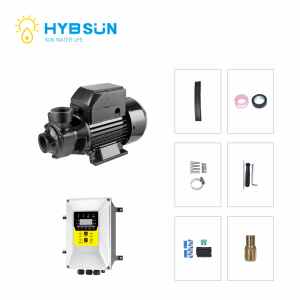

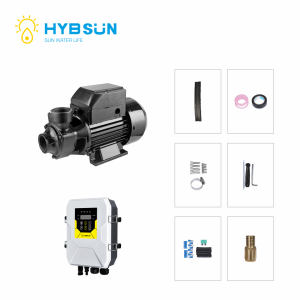

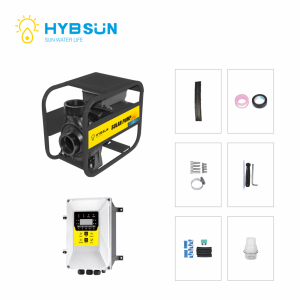

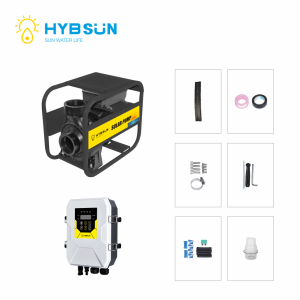

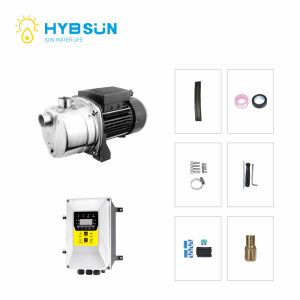

Solar Booster pump accessories and packaging
A Brief Self-Nomination,Why Choose HYBSUN SOLAR Booster PUMP？
What’s up? HYBSUN in the house – your go-to solar pool water pumping solutions guru. We’ve been killing it in this game since ‘05. We’re all about making the best solar water pumps on the planet. We’re the ones who set the standard for innovation and quality in this industry.
Why Choose HYBSUN?
- Certified Worldwide: Our solar pumps are certified to meet international standards (ISO9001, REACH, Rohs, SGS).
- Advanced Manufacturing: We produce over 10,000 sets per year with the latest technology.
- Factory Direct: Competitive pricing, efficiency, and expert craftsmanship.
Customized Solutions for Solar Water Pumping
At HYBSUN, we want to make sure you have the perfect solar water pumping solution for your farm or orchard. Whether you need one of our standard solar water pumps or a custom-designed system, we can make it happen for you.
Increase Your Crops with HYBSUN
When you choose HYBSUN, you’re not just getting a great solar water pump. You’re getting a partner who’s committed to your success in agriculture. We’ll help you get the most out of your irrigation and increase your crop yield with our top-of-the-line solar water pumps.
Things you Need to Know
To save you from worries, here are some facts you need to know about our Solar Borehole Pumps supplies:
Can I customize a solar water pump?
Yes, please let me know your height and required flow. If you want to customize the water pump, please contact us through our email!
Can you replace products that are damaged during delivery?
Although we ensure top-notch safety for all our orders, mishaps do happen. When they do, please contact customer support on our site. They'll advise you accordingly.
How long does it take for me to receive the goods I ordered?
If it is a sample, we usually only need 1 week, if it is wholesale, it usually takes 4 weeks
How long is your warranty?
Our warranty is 2 years.
