How to fix a pump not working?

Is your water pump sputtering, underperforming, or completely dead?

You're losing precious time, and your water supply is at risk.

The fix might be more fundamental than a simple repair.

Fixing a non-working pump often starts with a proper diagnosis. The most common "failure" is a mismatch between the pump and the job. Ensure your pump type is correct for your required water flow, well depth (head), and water quality to solve the performance issue.

A pump that fails to work as expected is not always a sign of a defective product.

More often, it's a sign of a bad match between the equipment and the environment.

A pump designed for low-sand, high-flow conditions will inevitably fail in a deep, sandy well.

To truly fix your water problem, you need to become a diagnostician.

You must understand the different tools available and choose the right one for your specific situation.

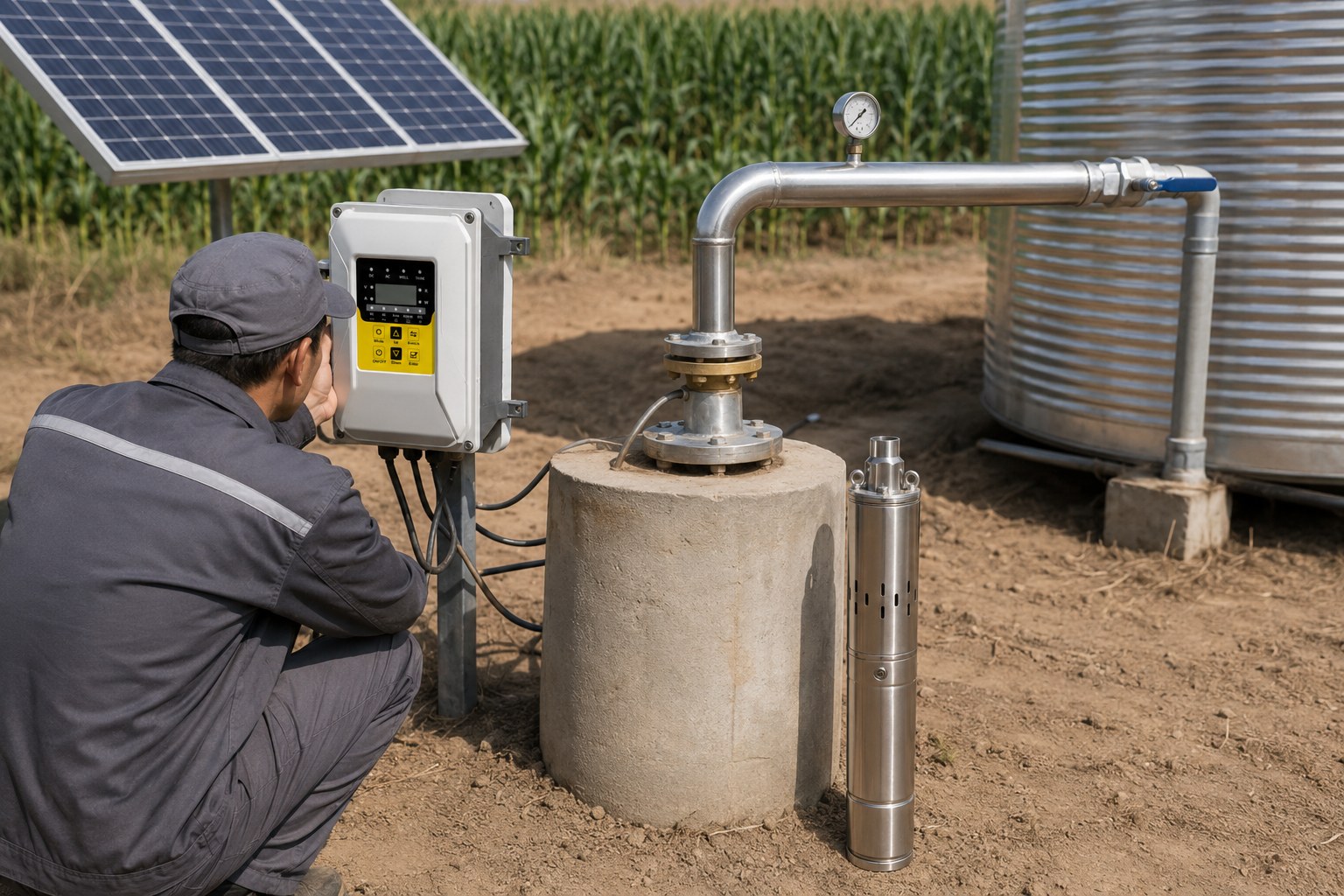

Let's explore the core types of solar water pumps.

This will help you diagnose if your current setup is optimized for success or destined for failure.

The High-Head Specialist: Is a Solar Screw Pump Your Solution?

Are you struggling to draw water from an exceptionally deep well?

Does your current pump lack the sheer vertical power to lift water to the surface?

This is a classic high-head problem, where a specialized solution is needed.

A solar screw pump is the specific fix for high-head, low-flow scenarios. It uses a stainless steel helical screw within a rubber stator to "push" water upwards, generating immense pressure. This makes it the ideal solution for deep wells, high-elevation water storage, and domestic water supply.

Understanding the Screw Pump's Power

The magic of the screw pump lies in its design, known as a progressing cavity pump.

It doesn't use centrifugal force like an impeller pump.

Instead, a rotating metal screw (the rotor) turns inside a flexible rubber housing (the stator).

This action creates sealed cavities of water that "progress" from the pump's intake to its outlet.

Because these cavities are sealed, the pump can build up very high pressure, making it capable of pushing water up from depths that would stall other pump types.

This design is exceptionally effective, allowing it to lift water from wells over 150 meters deep.

Key Performance Metrics for Diagnosis

To determine if a screw pump is the right "fix" for you, compare its capabilities with your needs.

A key advantage is its sand resistance.

The screw design can handle water with a higher concentration of sand and grit without the rapid wear and tear that would destroy a centrifugal impeller.

It can often handle sand concentrations up to 1.5%, whereas many centrifugal pumps start failing at 0.5%.

When a Screw Pump is the Wrong Fix

This pump is a specialist, not a generalist.

Its primary limitation is flow rate.

If you need to irrigate a large farm or fill a large reservoir quickly, a screw pump will feel incredibly slow.

For example, irrigating a 1-hectare field might require 50-60 cubic meters of water per day.

A screw pump delivering 3 m³/h would need to run for over 16 hours straight.

In contrast, a high-flow centrifugal pump could do the same job in less than 6 hours.

So, if your "problem" is low water volume for large-scale agriculture, a screw pump is not the fix; it would be the cause of the problem.

The High-Flow Workhorse: Fixing Issues with a Solar Plastic Impeller Pump

Do you need to move a massive amount of water for your farm, ranch, or large garden?

Is your current pump just a trickle when you need a flood?

You're facing a flow rate problem, and the solution lies in a pump designed for volume.

For high-volume needs like farm irrigation or pasture water supply, a multi-stage solar centrifugal pump with plastic impellers is often the right fix. It is designed to move large quantities of water efficiently and offers excellent resistance to fine sand, making it a powerful, cost-effective solution.

The Centrifugal Advantage for High Flow

This type of pump works on a completely different principle than a screw pump.

It uses a series of impellers, which are like spinning disks with vanes.

As the impellers spin at high speed, they fling water outwards using centrifugal force.

This action creates low pressure at the center (the intake) and high pressure at the edge, pushing water through the pump and up the pipe.

By stacking multiple impellers on top of each other (a "multi-stage" design), the pump can build up enough pressure for medium-head applications, typically up to 100 meters.

Its true strength, however, is the ability to move a high volume of water, with some models easily exceeding 15 cubic meters per hour.

This is a 400% increase in flow compared to a typical screw pump.

Material Science: The Role of Durable Plastic Impellers

The choice of plastic for the impellers is a strategic engineering decision.

Modern engineering plastics are incredibly durable, lightweight, and economical.

Crucially, they offer excellent wear resistance against fine sand.

Unlike a hard-on-hard collision between sand and a metal impeller which can cause rapid erosion, the slightly more forgiving surface of a plastic impeller can handle fine particles more effectively.

This makes it ideal for wells and rivers in regions like Africa and the Americas, where water sources often contain fine silt.

Furthermore, plastic impellers make the pump lighter and less expensive to manufacture, passing on cost savings to the end user.

Diagnosing Failure: Why Your Plastic Impeller Pump Might "Not Work"

This pump is a workhorse, but it has its limits.

If your plastic impeller pump is failing, it's likely being used outside of its design parameters.

For example, using this pump in a 150-meter deep well will result in almost no water output.

It's not broken; it's simply the wrong tool for an extreme-head application.

Understanding these boundaries is key to "fixing" your water system.

The Durability Expert: When a Stainless Steel Impeller Pump is the Only Fix

Are you replacing your water pumps every couple of years?

Do they fail from rust, corrosion, and leaks rather than old age?

This constant cycle of replacement, downtime, and expense points to a single culprit: your water is chemically destroying your equipment.

In corrosive, acidic, or alkaline water, the only sustainable fix is a pump built to withstand the chemical attack. A solar pump with stainless steel impellers and housing offers superior corrosion resistance, ensuring a long service life and reliable operation in harsh water environments.

Decoding Water Corrosivity

Water is not always pure H₂O.

It can contain dissolved minerals and chemicals that make it acidic (low pH) or alkaline (high pH).

Water in regions with alkaline soils, like parts of Australia, or in areas with industrial runoff can have a pH that is highly corrosive to standard cast iron or even some plastic pump components.

This corrosion doesn't just cause rust.

It can eat away at impellers, reducing their efficiency.

It can weaken the pump housing, leading to leaks.

It can cause mineral buildup (scaling) that seizes the pump's moving parts.

A standard pump in water with a pH of 5.5 might fail in 18 months, while a stainless steel pump could last for over a decade in the same conditions.

The SS304 Stainless Steel Advantage

The "fix" in this scenario is material science.

High-quality pumps use SS304 stainless steel for all components that come into contact with water.

SS304 is a specific grade of stainless steel that contains approximately 18% chromium and 8% nickel.

This composition is critical.

The chromium reacts with oxygen to form a thin, invisible, and incredibly durable "passive layer" on the surface of the steel.

This layer self-heals if scratched and provides a powerful barrier against rust and corrosion.

This makes the pump highly resistant to both acidic and alkaline conditions, dramatically extending its service life by up to 500% compared to pumps made from inferior materials.

Cost vs. Total Cost of Ownership (TCO)

A stainless steel pump has a higher upfront cost.

This can make some buyers hesitate.

However, this is a classic case of short-term vs. long-term thinking.

Consider the Total Cost of Ownership over 10 years for a corrosive well.

The stainless steel pump, while 75% more expensive initially, is actually 65% cheaper over the long run.

This doesn't even account for the cost of labor for replacements and the lost productivity from pump downtime.

If your pumps are failing prematurely due to water quality, the most expensive pump you can buy is another cheap one.

The real fix is investing in durability.

The Unseen Engine: Is an Inefficient Motor the Real Problem?

Your pump is the right type for the well, but performance is still weak.

You have a massive solar array, but the water output on a sunny day is disappointing.

The real problem might be the invisible, power-hungry heart of your system: an inefficient motor that's wasting your solar energy.

The "fix" for a system that underperforms despite having the right pump is often a better motor. A high-efficiency Brushless DC (BLDC) permanent magnet motor can achieve over 90% efficiency, delivering more water with less power. This directly reduces the number of solar panels needed and lowers overall system cost.

What Defines a High-Efficiency Motor?

Not all motors are created equal.

Older pump designs often use brushed DC motors or AC motors that are far less efficient.

A brushed motor might only convert 65-75% of the electrical energy into mechanical motion.

The rest is lost as heat.

A modern BLDC motor, on the other hand, is a game-changer.

By using powerful permanent magnets (often made of neodymium iron boron) and eliminating friction-inducing brushes, these motors can achieve efficiencies of 90% or even higher.

This 15-25% efficiency gain is enormous.

It means that for every 1000 watts of solar power generated, a BLDC motor delivers 900+ watts of pumping power, while an older motor might only deliver 700 watts.

The Impact on Your Entire System

This efficiency has a compounding effect on the entire system.

Let's look at the numbers.

To get 700 watts of pumping power, you would need:

• With a 70% efficient motor: 1000 watts of solar panels.
• With a 92% efficient motor: Only 760 watts of solar panels.

The high-efficiency motor allows you to reduce the size of your solar array by nearly 25%.

Since solar panels are a major cost component, this translates into significant upfront savings.

Furthermore, BLDC motors are more compact and lightweight.

A modern BLDC motor can be up to 47% smaller and 39% lighter than a traditional motor of the same power output.

This makes installation easier and cheaper, especially for deep well pumps that need to be lowered by hand.

Technical Advantages of BLDC Motors

Beyond efficiency, BLDC motors offer other key benefits that "fix" common pump problems.

• High Torque: They provide high starting torque, which is essential for overcoming inertia and getting water moving in screw pumps or deep well applications.
• Long Lifespan: With no brushes to wear out, they are virtually maintenance-free and have a much longer operational life.
• Intelligent Control: They are perfectly suited for pairing with smart MPPT (Maximum Power Point Tracking) controllers, which constantly adjust the pump's speed to extract the maximum possible power from the solar panels as sunlight conditions change.

If your system seems sluggish, the motor is the first place to look.

Upgrading to a system powered by a high-efficiency BLDC motor is often the most effective fix for poor performance.

Solving the "No Sun, No Water" Problem: The AC/DC Hybrid Fix

Your solar pump is a model of efficiency on bright, sunny days.

But what happens when it's heavily overcast, raining, or dark?

Your water supply stops.

This total reliance on the sun creates an unacceptable vulnerability for homes, farms, and businesses.

The ultimate fix for inconsistent water supply is a hybrid power system. An intelligent AC/DC hybrid controller allows the pump to run on solar power when available, and automatically switch to AC grid or generator power when sunlight is insufficient. This guarantees a reliable, 24/7 water supply.

How a Hybrid Controller Creates Reliability

A hybrid AC/DC controller is the brain of a resilient water system.

It is designed with two separate power inputs: one for DC power from your solar panels and one for AC power from the grid or a backup generator.

The controller's internal logic constantly monitors the solar input.

1. Full Sun: When the solar panels are producing enough power, the controller directs 100% of this DC power to the pump. The AC connection remains idle.
2. No Sun (Night/Heavy Cloud): When the solar input drops below a usable threshold, the controller instantly and automatically switches to the AC power source, keeping the pump running without interruption.
3. Partial Sun (Hybrid Function): The most advanced controllers feature a true hybrid function. If the sun can provide 70% of the power the pump needs, the controller will use all of that solar energy and only draw the remaining 30% from the AC source.

This hybrid approach ensures you are always using free solar energy first, minimizing your reliance on paid electricity.

The Unbeatable Benefit: 24/Hour Water Security

For many applications, intermittent water is not an option.

• Domestic Use: A family cannot be told they can't shower, flush toilets, or get a drink of water because it's a cloudy day.
• Livestock Farming: Animals require constant access to drinking water. A single day without water in hot climates can be catastrophic for livestock health and farm profitability.
• Critical Irrigation: Certain crops may require watering at specific times, even at night or on cloudy days, to prevent stress or failure.

The AC/DC hybrid system removes this vulnerability.

It transforms a solar water pump from a "daylight-only" tool into a full-time, reliable utility.

It provides the environmental and cost benefits of solar with the 24/7 reliability of a traditional grid-powered pump.

System Simplicity and Integration

Adding a hybrid controller is a straightforward "fix" for an existing or new solar pump system.

The controller is installed between the power sources and the pump.

You connect the solar panel wires to the DC input and the AC power cord to the AC input.

The controller handles all the complex switching and power blending automatically.

There are no manual switches to flip.

This ensures that even if you are away from the property, the system will intelligently manage its power sources to keep the water flowing.

It is the definitive solution for anyone who wants the benefits of solar without compromising on reliability.

Conclusion

Fixing a pump issue is rarely about a single part.

It requires a holistic system check.

True success comes from matching the right pump type, motor efficiency, and power source to your specific water needs, ensuring a reliable, efficient, and long-lasting solution.

FAQs

Why is my solar pump not pumping water?

Check for simple issues first: disconnected wires, closed valves, or a clogged intake screen. If those are fine, the issue could be insufficient sunlight or a mismatch between your pump and well depth.

How do you test a solar water pump?

Disconnect the pump from the plumbing and test it in a bucket of water with a direct, reliable power source (like a battery or a direct solar connection on a very sunny day) to see if the motor runs and ejects water.

Why does my solar pump run slow?

This is usually due to low sunlight on cloudy days. It could also mean your solar array is too small for the pump, or the pump is trying to lift water from a depth beyond its optimal range.

Can a solar pump work without a battery?

Yes, most modern solar pump systems are designed to run directly off solar panels during the day without batteries. Batteries are an option for storing energy for nighttime use but are not required for daytime operation.

How do I reset my solar pump controller?

Most controllers can be reset by disconnecting all power sources (both solar and AC, if applicable) for about 60 seconds and then reconnecting them. Solar should be connected first, then any AC source.

What is the most common problem with solar water pumps?

The most common "problem" is incorrect system design. Using a high-flow pump in a deep well, or a standard pump in corrosive water, will always lead to poor performance or premature failure.
