How many solar panels are required for a water pump?

Struggling with high electricity bills for your water pump?

Solar offers a free energy source, but sizing the system correctly can be confusing and lead to costly mistakes.

The number of panels needed depends on your pump's wattage, your location's daily peak sun hours, and the pump's type.

A small quarter-horsepower pump might only need two 100-watt panels, while a large 100-horsepower industrial pump could require over 300 high-wattage panels.

To accurately determine the right number of solar panels, you need to move beyond simple estimates.

It's a process that involves understanding your specific water needs, the technical specifications of your pump, and the solar potential of your geographic location.

This guide will walk you through the essential calculations and considerations, ensuring you invest in a system that is both efficient and reliable.

Let's dive into the details to build the perfect solar water pumping solution.

Understanding Pump Types and Power Needs

Confused about why some pumps need more panels than others?

Different pump types have vastly different energy requirements, which directly affects your solar array size and total system cost.

Pumps designed specifically for solar are highly efficient, needing as little as 200 watts to operate.

In contrast, classic AC pumps, even small ones, often require 800 watts or more, demanding a significantly larger and more expensive solar array.

The type of pump you choose is the single most significant factor in determining your solar panel requirements.

The market offers a wide variety of pumps, but they generally fall into two main categories, each with its own efficiency profile and power demands.

Furthermore, the technology inside the pump, particularly the motor, plays a critical role.

Modern advancements have led to motors that can slash energy consumption by over 30%, directly translating to fewer solar panels and a lower upfront investment.

Understanding these differences is the first step to accurately sizing your system and avoiding the common pitfall of either overspending on unnecessary panels or building an underpowered system that fails to meet your water demands.

The Two Main Classes of Pumps

Solar water pumping systems are built around two primary categories of pumps: those designed specifically for DC solar power and classic AC pumps adapted for solar use.

Pumps designed for solar are typically Direct Current (DC) pumps.

They are engineered for maximum efficiency, often incorporating high-efficiency brushless DC (BLDC) motors.

This design allows them to run effectively on lower power inputs.

For instance, a small 1/4 horsepower (HP) DC pump might only need 200 watts, which can be supplied by just two 100-watt panels.

Even larger 1 HP DC pumps can operate efficiently with 800 to 1,200 watts.

Classic Alternating Current (AC) pumps are the traditional pumps designed to run on grid electricity.

They can be adapted for solar use with a solar inverter or a specialized variable frequency drive (VFD) controller.

While versatile, they are generally less efficient in a solar setup.

A 1/2 HP AC pump, for example, might require around 800 watts, similar to a larger 1 HP DC pump, highlighting the efficiency gap.

This difference becomes more pronounced with larger systems.

The Powerhouse: BLDC Motors

The core of modern, efficient solar pumps is the Brushless DC (BLDC) permanent magnet motor.

This technology is a game-changer for solar applications.

These motors achieve electrical efficiencies exceeding 90%, a significant improvement over traditional AC induction motors, which often operate at around 75% efficiency.

This 15-20% efficiency gain means the pump can do the same amount of work with significantly less power.

Practically, this reduces the number of solar panels needed by a similar margin, lowering system cost and complexity.

Technically, these motors use powerful permanent magnets, such as neodymium iron boron, and an electronic controller instead of brushes.

This design not only boosts efficiency but also eliminates a common point of mechanical failure and maintenance.

The result is a motor that is more reliable and has a longer service life.

Furthermore, BLDC motor designs are inherently more compact.

They can be up to 47% smaller and 39% lighter than a traditional motor of equivalent power output, simplifying transportation and installation, especially in remote, off-grid locations.

Sizing Examples Across Different Pump Designs

The internal design of a pump—specifically how it moves water—also impacts its energy needs.

Let's compare three common types of solar deep well pumps, all powered by efficient BLDC motors.

A Solar Screw Pump is designed for low flow and very high head (vertical lift).

It uses a helical screw to push water, making it ideal for deep wells where water needs to be lifted a great distance.

Because it prioritizes pressure over volume, a 1/2 HP screw pump might only require 500-600 watts, as its workload is focused on lift.

A Solar Plastic Impeller Pump is a centrifugal pump built for high flow and medium head.

It is perfect for farm irrigation where large volumes of water are needed but the well is not exceptionally deep.

A 1 HP model of this type might require 800-1000 watts to sustain its high water output.

A Solar Stainless Steel Impeller Pump offers a premium solution for corrosive water environments.

It also provides high flow and medium-to-high head, but its robust construction adds weight and cost.

A 1 HP stainless steel model would have similar power requirements to its plastic counterpart, around 800-1000 watts, with the primary difference being durability rather than energy consumption.

Calculating Your Specific Panel Needs Step-by-Step

Ready to do the math?

Guessing your panel needs can lead to an underpowered system that fails on cloudy days or wastes money on excess capacity you'll never use.

Calculate your pump's daily watt-hours by multiplying its wattage by its daily run hours.

Then, divide this energy need by your location's peak sun hours and add a 14% buffer for system losses.

Finally, divide this adjusted wattage by a single panel's output.

This calculation might seem complex, but it's a straightforward process when broken down into individual steps.

By following this method, you can move from a rough guess to a precise, data-driven estimate tailored to your exact situation.

This approach accounts for the three most critical variables: your pump's power draw, your geographic location's solar resource, and the inherent inefficiencies of any solar energy system.

Each step builds upon the last, systematically refining the number to ensure your final panel count is just right.

Let's walk through the five key steps to accurately size your solar array.

Step 1: Determine Your Pump's Energy Consumption

The first step is to quantify exactly how much energy your pump uses.

This begins with its power rating, which is often listed in horsepower (HP).

To use this in electrical calculations, you must convert it to watts.

The conversion factor is 1 HP = 745.7 watts.

So, for a 2 HP pump, the calculation is: 2 HP × 745.7 W/HP = 1,491.4 watts.

Next, you must determine how many hours per day the pump needs to run to meet your water requirements.

This can vary from 6 to 8 hours for a pool pump or be based on the irrigation needs of a specific crop area.

Let's assume a daily run time of 6.5 hours.

To find the total daily energy consumption in watt-hours (Wh), multiply the pump's wattage by its run time: 1,491.4 W × 6.5 h = 9,694.1 Wh.

This is roughly 9.7 kilowatt-hours (kWh) per day.

This value represents the total energy your solar panels must generate each day to power the pump.

Step 2: Find Your Location's Peak Sun Hours

Not all daylight hours are equal for solar production.

"Peak Sun Hours" is a standardized metric that represents the number of hours per day when solar intensity is at its peak (1,000 watts per square meter).

This is the most critical variable for sizing a solar system, as it determines how much energy a panel can generate in a specific location.

A system in sunny Arizona will produce far more energy than the same system in cloudy Washington state.

For example, Los Angeles receives about 6 peak sun hours per day on average, while a location in Maine might only get 4.

This means a solar panel in Los Angeles will generate about 50% more energy each day than the identical panel in Maine.

You must use the value for your specific location to size your system correctly.

The table below, with data sourced from the National Renewable Energy Laboratory (NREL), provides average values for various states.

Step 3: Sizing the Solar System You Need

With your daily energy consumption and peak sun hours known, you can now calculate the required size of your solar array in kilowatts (kW).

The formula is straightforward: divide your daily energy needs (in kWh) by your location's peak sun hours.

Using our ongoing example:

Required System Size (kW) = 9.7 kWh ÷ 6 peak sun hours = 1.62 kW

This result means you need a solar array that can produce 1.62 kW (or 1,620 watts) of power during peak sun conditions to meet your pump's daily energy demand.

This figure represents the ideal, theoretical size of the solar array.

However, real-world conditions are never perfect, and we must account for various inefficiencies in the next step.

Failing to do so would result in a system that consistently underperforms and fails to run your pump for the required duration, especially on less-than-perfect days.

Step 4: Consider Solar System Losses

Solar energy systems are not 100% efficient.

Energy is lost at various points between the sun and the pump.

These losses can be caused by factors like high temperatures (which reduce panel efficiency), dust or dirt on the panels, wiring resistance, and inverter inefficiency.

Weather conditions like haze or intermittent clouds also play a significant role.

To ensure the system performs reliably even under non-ideal conditions, it's standard practice to add a "derate factor" or buffer to the calculated system size.

A conservative and widely used buffer is 14%.

This effectively oversizes the array slightly to compensate for these expected losses.

To apply this buffer, you multiply the ideal system size by 1.14.

Adjusted Solar System Size = 1.62 kW × 1.14 = 1.85 kW

This adjusted size of 1.85 kW (or 1,850 watts) is a much more realistic target for your solar array's output.

This ensures the pump receives its required 9.7 kWh of energy throughout the day, even with typical system inefficiencies.

Step 5: Calculate the Number of Solar Panels

The final step is to translate the required system size into a specific number of panels.

To do this, you need to know the wattage of the individual solar panels you plan to use.

Panel wattages typically range from 250W to over 400W for residential and commercial use.

For this example, let's assume we are using common 375-watt panels.

Divide the adjusted system size (in watts) by the wattage of a single panel:

Number of Panels = 1,850 W ÷ 375 W/panel = 4.93 panels

Since you cannot install a fraction of a panel, you must always round up to the next whole number.

Therefore, you would need 5 solar panels.

If you were using 300-watt panels, the calculation would be 1,850 W ÷ 300 W/panel = 6.17, meaning you would need to install 7 panels.

This final calculation provides a concrete, actionable number for purchasing and installation.

Beyond the Panels: Other Key System Components

Think the panels are all that matters?

The controller and motor are the brains and heart of your system, dramatically impacting efficiency, performance, and the final panel count.

An intelligent MPPT controller can boost energy harvest by up to 30%, while a high-efficiency BLDC motor can reduce panel needs by over 15%.

For 24/7 operation, components like AC/DC hybrid controllers or battery backup become essential.

A common mistake is focusing solely on the solar panels and the pump itself.

In reality, a solar pumping system is a trio of critical components: the solar array, the controller, and the pump-motor unit.

The synergy between these parts determines the overall efficiency and reliability of your water supply.

A high-quality controller can extract significantly more power from your panels, especially in low-light conditions.

A highly efficient motor translates more of that electrical power into the mechanical work of moving water.

And for situations requiring water on-demand, day or night, additional components must be considered.

Let's explore these crucial elements that work in concert with your panels.

The Role of the Solar Controller

The solar pump controller is the intelligent link between the panels and the pump motor.

Its primary job is to manage the variable power from the panels and deliver it to the motor in a usable form.

The most advanced and efficient type is the Maximum Power Point Tracking (MPPT) controller.

An MPPT controller constantly adjusts the electrical operating point of the solar array to ensure it is harvesting the absolute maximum amount of power available at any given moment.

Compared to older, simpler PWM (Pulse Width Modulation) controllers, an MPPT controller can boost energy harvest by up to 30%, particularly during early mornings, late afternoons, and on overcast days.

This efficiency gain means a system with an MPPT controller can power a pump with a smaller, less expensive solar array.

For AC pumps, specialized controllers called Variable Frequency Drives (VFDs) are used.

These devices convert the DC power from the panels into AC power and can vary the frequency to control the pump's speed, allowing for soft starts and efficient operation under varying sunlight.

Some modern systems also feature AC/DC hybrid controllers, which can automatically switch between solar power and grid/generator power, ensuring an uninterrupted water supply.

The Impact of Pump and Motor Efficiency

As discussed, the motor's efficiency is paramount.

A BLDC motor's ability to operate above 90% efficiency directly reduces the power demand on the solar array.

However, the hydraulic efficiency of the pump itself is just as important.

This is largely determined by choosing the right type of pump for your specific application.

For example, a surface pump is designed to sit on the ground and pull water from a shallow source (a suction lift of no more than 7-8 meters).

They are optimized for this task and are highly efficient at moving large volumes of water horizontally.

Using a submersible pump in this scenario would be inefficient.

Conversely, a submersible pump is designed to be placed deep within a well, pushing water up to the surface.

It is highly efficient at creating high pressure to overcome the vertical lift.

Using a surface pump to try and draw water from a deep well is not only inefficient but physically impossible beyond its suction limit.

Matching the pump type—surface or submersible—to the water source is the first step in ensuring hydraulic efficiency and minimizing power requirements.

To Battery or Not to Battery?

A common question is whether a solar pumping system requires batteries.

The simple answer is no, most do not.

The standard and most cost-effective design is a "direct-drive" system, where the panels power the pump only when the sun is shining.

This introduces a different way of thinking about water management.

Instead of pumping water on demand, you pump water when the energy is free.

The most common strategy is to pump water during the sunniest parts of the day into a storage tank, typically located at a high elevation.

This practice, often called "pumping to storage," effectively turns potential energy (the elevated water) into a battery.

Water can then be released from the tank via gravity whenever it is needed, day or night, providing a reliable, pressurized water supply without the cost, complexity, and maintenance of a chemical battery bank.

Batteries are generally only recommended for applications where a storage tank is not feasible or where a pressurized system must operate directly from the pump at all times, even with no sun.

However, battery systems add significant cost (often doubling the system price), require a more complex charge controller, and have a limited lifespan, requiring replacement every 5-10 years.

Conclusion

Sizing your solar pump system involves a careful balance of pump type, wattage, local sun hours, and overall system efficiency.

A proper calculation ensures a reliable and cost-effective water solution.

FAQs

How many solar panels does it take to run a 1 HP water pump?
It depends on the pump type. A high-efficiency 1 HP DC pump may need 800-1200 watts, or about 3-4 (375W) panels, while an AC pump might need more.

Can a solar pump run without a battery?
Yes, most solar pumps run directly from panels during the day. Water is often stored in a tank for use at night, which is more cost-effective than batteries.

How many solar panels to run a 2 hp pool pump?
Typically 6 to 8 panels (375W each) are needed. The exact number depends on your location's sun hours and how many hours per day the pump runs.

Can solar pumps run on cloudy days?
Yes, but at a reduced flow rate. For consistent operation, you would need a larger solar array, a battery backup system, or an AC/DC hybrid controller.

What size solar pump do I need?
This depends on your required flow rate (gallons per minute) and total dynamic head (the total vertical distance you are lifting the water). A professional can help size it.

How deep can a solar pump go?
Submersible solar pumps are designed for deep wells and can push water from depths of several hundred feet. The deeper the well, the more power is required.

Do solar panels work for well pumps?

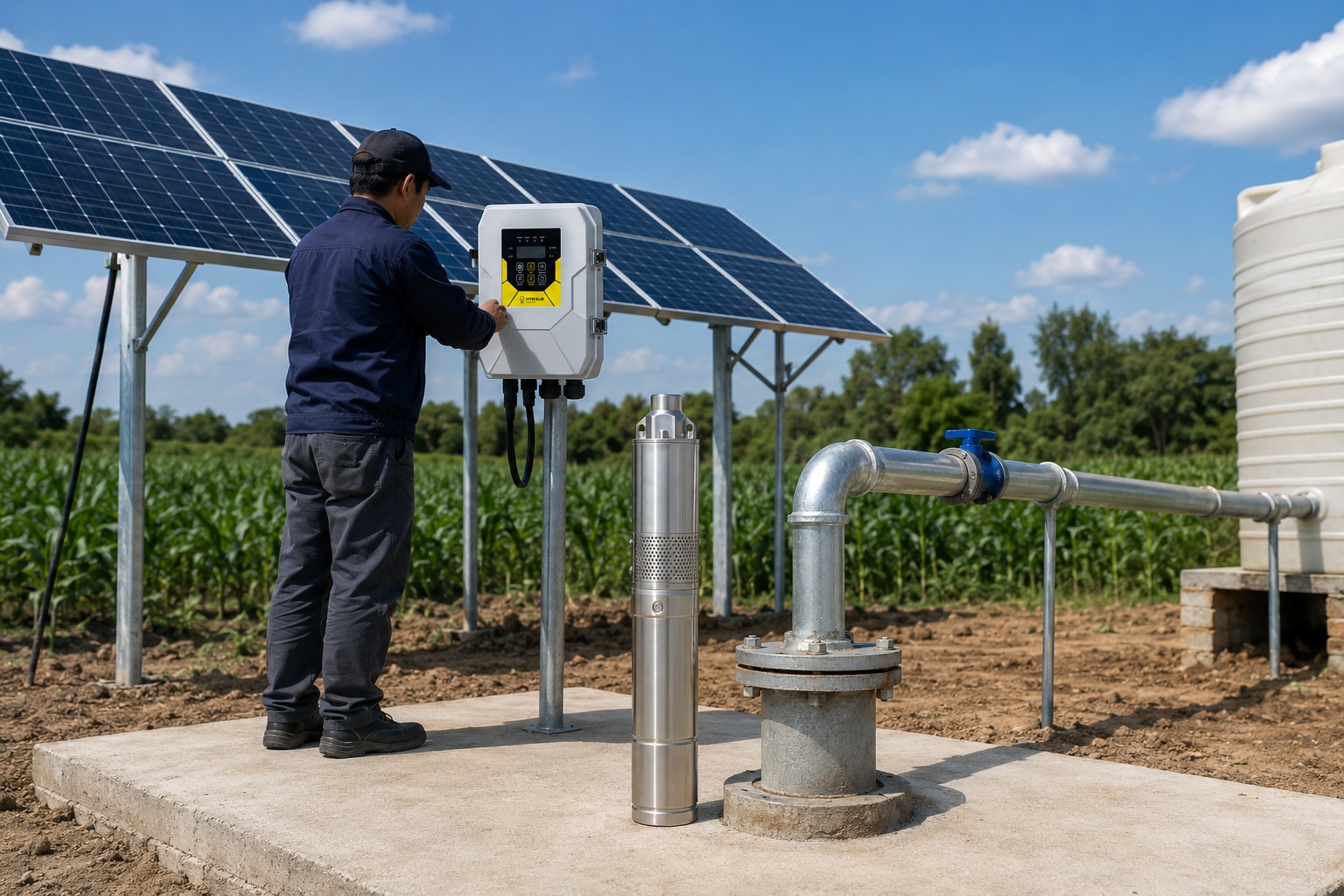

Absolutely. Submersible solar pumps are one of the most common and effective applications for solar energy, providing water for homes, livestock, and farms in off-grid areas.

How long do solar water pumps last?
A quality solar pump system can last for many years. The panels are often warrantied for 25 years, and a well-maintained brushless motor and pump can last a decade or more.
