How to protect a water pump from running dry?

A dry-running pump can lead to catastrophic failure and costly downtime.
You need a reliable way to safeguard your water management system from this common but preventable problem.

To protect a water pump from running dry, you must install a detection mechanism.
Options include float switches, pressure sensors, flow switches, or modern electronic controllers.
These devices automatically shut off the pump when water levels are too low, preventing motor burnout and expensive mechanical damage.

A pump running without water is like an engine running without oil.
It's a recipe for disaster.
The damage is often swift, severe, and expensive.
However, with the right knowledge and technology, you can make dry running a non-issue.
This guide will explore the essential methods and technologies available.
We will show you how to build a robust protection strategy for your pumping system.
Let's dive into the specifics of safeguarding your valuable pump investment.

Understanding the Mechanisms of Dry Run Protection

Your pump is the heart of your water system.
Protecting it from dry running is not optional; it's essential for longevity and reliability, saving you from unexpected, costly repairs.

The most effective way to prevent dry running is by using automatic shut-off systems.
These systems, such as float switches or electronic sensors, detect low water levels.
They then cut power to the pump before damage can occur, providing a critical safety net.

To choose the right protection, you first need to understand the danger.
A pump running dry is a pump that is self-destructing.
The consequences are severe and multifaceted, affecting every critical component of the system.
Understanding these failure points highlights the absolute necessity of a reliable protection system.
Let's break down exactly what happens and which methods offer the best defense.

What Happens When a Pump Runs Dry?

When a pump operates without water, it loses its primary coolant and lubricant.
This triggers a rapid cascade of failures.
The mechanical seal, which prevents water from entering the motor, is often the first component to fail.
Without water, the seal faces overheat due to friction, causing it to crack or melt in under a minute.
This failure allows water to breach the motor housing, leading to electrical shorts and complete motor burnout.
Simultaneously, the impellers and diffusers, which may be made of high-grade plastic or stainless steel, begin to heat up.
This can cause them to warp, melt, or even seize, resulting in a total loss of pumping capability.
The motor itself overheats, as it relies on the flow of water around its casing to dissipate heat.
This thermal stress can degrade the motor windings' insulation, leading to a 50% reduction in motor lifespan even from a single significant event.

Key Protection Methods Compared

Several technologies are available to prevent dry running, each with distinct advantages and use cases.
Choosing the right one depends on your application, budget, and desired level of reliability.

For basic applications like a rainwater tank, a simple float switch is often sufficient.
However, for a high-value deep well submersible pump, a more advanced electronic controller offers superior, multi-faceted protection that justifies the higher initial investment.
It not only prevents dry running but also protects against other electrical faults.

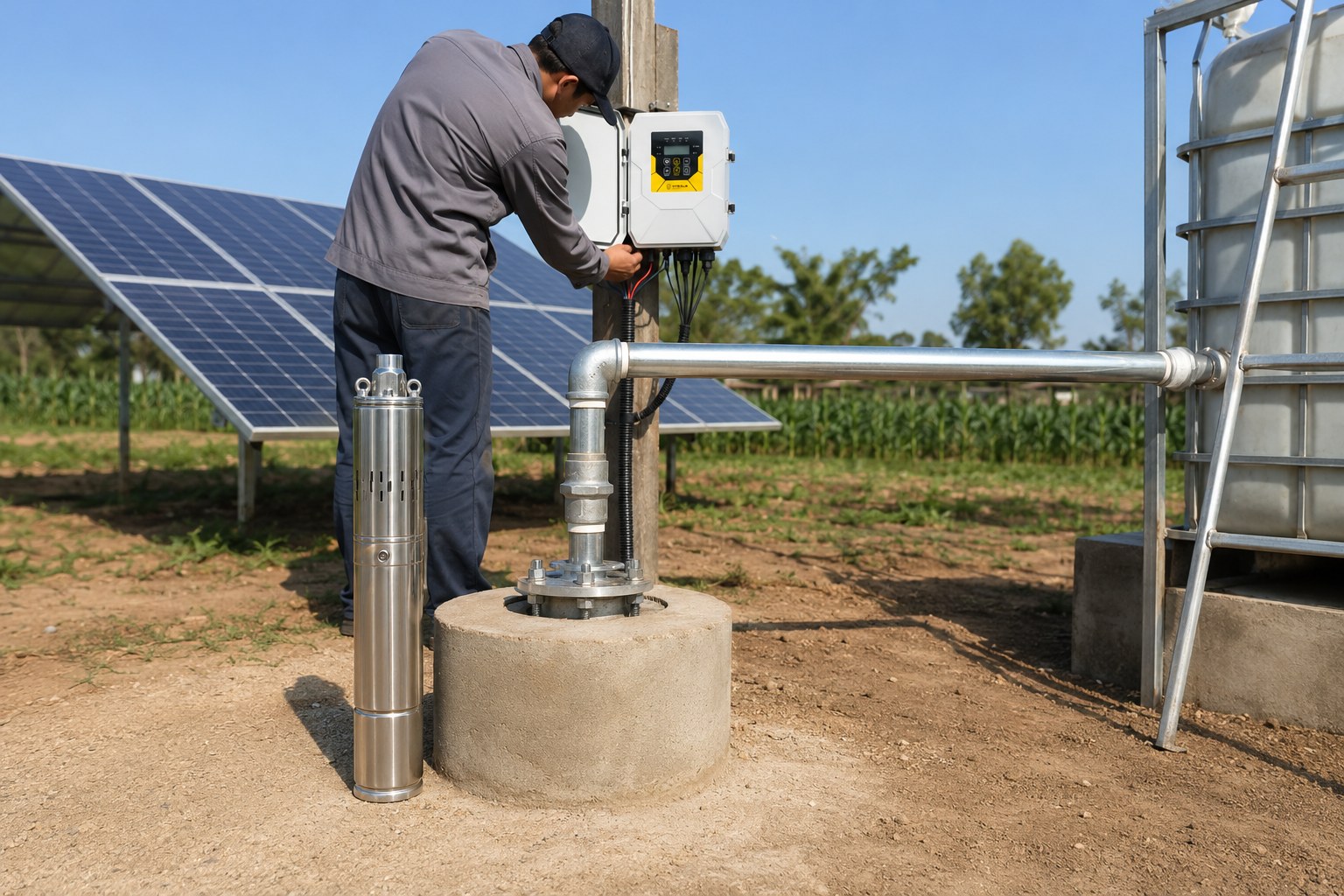

The Role of Advanced Controllers in Water Management

Simple switches offer basic protection.
But modern water systems demand a smarter approach.
Intelligent controllers provide comprehensive safety that mechanical switches alone cannot match, ensuring total system security.

Advanced pump controllers offer the most reliable dry run protection.
They monitor the motor's electrical signature, like power consumption.
A sudden drop in power, indicating no water load, triggers an automatic shutdown within seconds, offering a virtually foolproof solution for pump safety.

The evolution from simple mechanical switches to sophisticated electronic controllers marks a significant leap in pump protection technology.
These smart devices function as the brain of your water pump system.
They move beyond a simple on/off reaction to water levels.
Instead, they provide proactive, intelligent monitoring that safeguards the pump against a wide array of potential threats.
This ensures not only protection from dry running but also optimizes performance and extends the equipment's operational life by over 30%.
Let's explore how these controllers deliver this superior level of management.

Beyond Simple Switches: Intelligent Control

While a float switch can tell if water is present, an intelligent controller can tell how the pump is performing.
This is a critical distinction.
Modern controllers use powerful microprocessors to continuously analyze the motor's operational data.
They look for anomalies that signal trouble long before catastrophic failure occurs.
For example, they can detect a dry run condition by sensing a 15-20% drop in motor load (amperage).
This is far more precise than a pressure switch, which might not react until the pump has already run dry for a period.

How Smart Controllers Detect Dry Running

The core of a smart controller's protection lies in its ability to interpret the motor's electrical feedback.
When a pump is moving water, the motor is under a specific, predictable load.
When the water source is depleted, this load disappears.
The motor begins to spin more freely, and its power consumption drops significantly.

• Current (Amperage) Sensing: The controller establishes a baseline current draw during normal operation.
  If the current drops below a pre-set threshold (e.g., 70% of normal load) for more than a few seconds, it interprets this as a dry run and shuts the motor off.

• Power Factor Monitoring: In AC motors, the power factor changes with the motor's load.
  A smart controller can detect this shift and trigger a shutdown.

• Automatic Restart Functionality: After a dry run shutdown, a smart controller can be programmed to attempt a restart after a set time interval (e.g., 30 minutes).
  This allows the well or tank to potentially refill, restoring operation without manual intervention.
  If the pump runs dry again, the controller will shut it down and may wait for a longer interval, preventing repeated stress on the motor.

The MPPT Advantage in Solar Pumping

In solar pumping systems, Maximum Power Point Tracking (MPPT) controllers offer an additional layer of intelligence.
An MPPT controller's primary job is to maximize the energy harvest from the solar panels, increasing water output by up to 30%.
However, its sophisticated electronics are also perfectly suited for pump protection.
The same algorithm that optimizes power input can also detect the load changes associated with dry running.
This dual-functionality means you get best-in-class efficiency and best-in-class protection from a single device, making it a cornerstone of modern, reliable solar water systems.
It ensures your investment is not only productive but also secure.

Pump Selection: Your First Line of Defense

Preventing damage starts before the pump is even installed.
Choosing a pump designed for your specific water source conditions is the most fundamental step in preventing dry run issues.

Selecting the right pump is your primary defense.
A pump correctly matched to your well's depth, yield, and water quality is inherently less likely to run dry.
This proactive choice minimizes risk from the outset, forming the foundation of a reliable system.

The battle against dry running is often won or lost during the procurement phase.
While protection devices are crucial, they are reactive measures.
A proactive strategy involves selecting a pump whose design characteristics are inherently suited to the realities of your water source.
A deep well with a fluctuating water table presents a very different challenge than a shallow well with an abundant supply.
By matching the pump technology to the application, you create a system that is naturally more resilient and less dependent on backup safety systems.
This is especially true in off-grid solar applications where reliability is paramount.

For Unreliable or Deep Wells: The Screw Pump Advantage

In regions with deep boreholes or water levels that can drop significantly, a solar screw pump is an excellent first choice.
This pump type operates on a positive displacement principle.
A stainless steel helical rotor turns inside a rubber stator, creating sealed cavities that push water upwards.
This design gives it two key advantages.
First, it generates very high head (pressure), making it capable of lifting water from depths of over 150 meters with high efficiency.
Second, its design makes it highly resistant to sand and sediment.
If the water level drops and the pump ingests some abrasive material, it is far less likely to be damaged than a centrifugal pump.
This inherent durability makes it a robust choice for challenging conditions found in parts of Africa and Latin America.

For High-Volume, Stable Water Sources: Centrifugal Impeller Pumps

When the primary need is high flow rate for applications like farm irrigation or livestock watering, and the water source is reliable, a multi-stage centrifugal pump is ideal.
These pumps use a series of impellers to accelerate water, delivering large volumes at medium head.
They are available with two main impeller types:

• Plastic Impeller Pumps: These use impellers made from durable, wear-resistant engineered polymers like Noryl.
  They offer an excellent balance of performance and cost-effectiveness.
  Their lightweight nature also makes installation easier.
  They provide good resistance to fine sand, making them a workhorse for agricultural use in many parts of the world.

• Stainless Steel Impeller Pumps: For the ultimate in durability and longevity, pumps with SS304 stainless steel impellers are the premium choice.
  They offer superior resistance to both abrasion and corrosion, making them suitable for water with unusual pH levels or in regions with alkaline soil, such as parts of Australia.
  While the initial cost is higher, their extended service life can result in a lower total cost of ownership in demanding environments.

Pump Suitability Comparison

By selecting the pump type that best aligns with your water source's characteristics, you build the first and most important layer of dry run protection into your system.

The Power Core: Why High-Efficiency Motors Matter

The motor is the engine of your pump.
A high-efficiency motor does more than just save energy; it provides the intelligence needed for superior protection and a longer lifespan.

A high-efficiency motor, like a BLDC model, is easier to protect.
Its power consumption is tightly linked to its workload.
This precision allows a controller to instantly detect the power drop from a dry run, enabling faster, more reliable shutdowns than with standard motors.

The motor driving your pump is more than just a source of power; it's a source of critical operational data.
The choice of motor technology directly impacts the effectiveness of any electronic protection system.
While any motor can be paired with a protection device, high-efficiency brushless DC (BLDC) permanent magnet motors offer a distinct advantage.
Their inherent design characteristics make them run cooler, respond more predictably to load changes, and ultimately, easier to protect.
This synergy between motor and controller creates a system that is not only up to 40% more energy-efficient but also significantly more robust and reliable.

How BLDC Motors Enable Smarter Protection

A BLDC motor's performance is precisely managed by its electronic controller.
Unlike a basic AC induction motor, the controller has exact information on the motor's speed (RPM) and torque.
There is a direct, linear relationship between the work the pump is doing (moving water) and the electrical power the motor consumes.
This creates a highly reliable data signature for normal operation.
When the pump runs dry, the workload vanishes.
The controller immediately sees this as a drastic and instantaneous drop in power consumption and torque demand.
This clear signal allows the controller to trigger a protective shutdown with a reaction time measured in milliseconds.
An older AC motor, by contrast, has a less direct relationship between load and power, making the "dry run" signal fuzzier and harder to detect quickly.

Efficiency and Heat: A Vicious Cycle

Pump motors rely on the surrounding water for cooling.
When a pump runs dry, this cooling effect is lost, and heat builds up rapidly.
This is where motor efficiency becomes a critical factor in survival.

• Standard Efficiency Motor (e.g., 60% efficient): For every 1000 watts of electrical power it consumes, it converts 600 watts into pumping power and wastes 400 watts as heat.

• High-Efficiency BLDC Motor (e.g., 92% efficient): For every 1000 watts of electrical power, it converts 920 watts into pumping power and wastes only 80 watts as heat.

The high-efficiency motor generates 80% less waste heat than the standard motor.
When a dry run event occurs, this lower heat generation provides a much larger thermal safety margin.
The motor takes significantly longer to reach a critical temperature, giving the protection system more time to react and preventing immediate damage to windings and seals.
This inherent "cool running" characteristic is a powerful passive defense mechanism.

The Data Advantage for Protection

The precision of a BLDC motor system allows for extremely reliable protection logic.
A controller can be programmed with very tight operational parameters.
Any deviation is immediately flagged as a potential problem.
This data-driven approach is fundamentally more reliable than a simple mechanical switch.
It protects against not only dry running but also other dangerous conditions like a jammed impeller (overcurrent) or operating against a closed valve (high pressure, low flow), providing comprehensive safety for the entire system.

Ensuring 24/7 Operation with Hybrid Power Solutions

Your water needs don't stop when the sun goes down.
A hybrid power system ensures uninterrupted water access while also enhancing pump protection through stable, consistent operation around the clock.

Hybrid AC/DC controllers provide a seamless solution for 24-hour water needs.
They automatically switch from solar to grid or generator power when sunlight is insufficient.
This ensures a constant water supply and protects the pump from the stress of low-power conditions.

For many critical applications, from domestic water supply to livestock watering, access to water cannot be limited to daylight hours.
While solar pumps are a marvel of efficiency and sustainability, their reliance on the sun can be a limitation.
Frequent starts and stops during periods of intermittent cloud cover or low light can put stress on the pump's motor and mechanical seals.
This is where a hybrid power solution becomes invaluable.
It's not just about convenience; it's about creating a more stable and reliable operating environment that inherently protects the pump and maximizes its lifespan.

The Problem with Solar-Only Limitations

A standard solar pump system is designed to slow down or stop completely when solar irradiation is low.
On a day with passing clouds, the pump might start and stop dozens of times.
Each start-up cycle places a momentary high-load on the motor and drive components.
While a well-designed system can handle this, it contributes to long-term wear and tear.
More importantly, if water is needed at night or on a heavily overcast day, a solar-only system simply cannot deliver.
This forces users to invest in a completely separate backup pump, adding complexity and cost.

Introducing AC/DC Hybrid Controllers

The solution is an intelligent AC/DC hybrid controller.
This advanced device serves as a central power management hub for the pump.
It has inputs for both DC power from solar panels and AC power from the grid or a generator.
The controller's logic is designed to prioritize solar power at all times.

• Priority Solar Mode: When sunlight is abundant, the controller directs 100% of the solar power to the pump.
  The AC input remains on standby.

• Hybrid Blending Mode: If clouds reduce solar input, the controller can blend AC power with the available DC power.
  This maximizes the use of free solar energy while ensuring the pump maintains its required speed and flow.

• Automatic AC Takeover: When solar power is insufficient or unavailable (e.g., at night), the controller automatically and seamlessly switches over to the AC power source.

This entire process is fully automatic.
The end-user experiences a continuous, uninterrupted water supply, regardless of the weather or time of day.

How Hybrid Systems Enhance Pump Protection

This stable power environment created by a hybrid controller directly contributes to pump protection.
By eliminating the frequent start/stop cycles associated with variable sunlight, it reduces mechanical stress on the pump's seals, bearings, and motor.
The pump operates within its optimal performance curve for longer periods, which is inherently more efficient and safer.
Furthermore, the sophisticated electronics within the hybrid controller include the same robust dry run protection logic—monitoring motor load, current, and other parameters—regardless of the power source.
This means your investment is protected 24/7, whether it's running on free energy from the sun or on grid power during the night.

Conclusion

Protecting your water pump from dry running is a multi-layered strategy.
It combines smart pump selection, advanced electronic controllers, efficient motors, and stable power sources to create a truly resilient system.

FAQs

What happens if a water pump runs without water?
It will rapidly overheat. This damages the mechanical seals and can burn out the motor, often causing permanent failure in just a few minutes.

How do I know if my pump has dry run protection?
Check the product manual or controller specifications. Look for features like "dry run protection," "low water cutoff," float switch compatibility, or current-sensing shutdown logic.

Can a pump recover from running dry?
Sometimes, if the duration is very short. However, prolonged dry running almost always causes irreversible damage to the seals, impellers, or motor windings.

How long can a pump run dry before damage?
This varies by pump type and size, but damage can begin in under 60 seconds. The heat builds up extremely quickly without water for cooling.

Is dry run protection standard on all pumps?
No, it is not. It is typically a feature found on higher-quality pumps or offered as part of an advanced, external pump controller system.

What is the best dry run protection for a well pump?
A combination is best. Use level-sensing probes or a float switch as a primary trigger, backed up by an intelligent controller that monitors motor load.

Can I add dry run protection to an existing pump?
Yes, in most cases. You can retrofit a system by installing an external device like a float switch, pressure switch, or a standalone pump protection relay.
