What size pump do I need to lift water 20 feet?

Struggling to choose a pump for a 20-foot lift?

The wrong choice wastes time and money.

Here’s how to get it right the first time.

For a simple 20-foot lift, a 1/2 HP or 3/4 HP pump is often sufficient. However, the final choice depends on your required water flow (GPM) and if you're using a pressure tank, which adds significant workload.

Choosing the right horsepower is just the beginning.

The real challenge is understanding the other factors that affect pump performance.

These factors ensure you invest wisely in a system that delivers water efficiently for years.

Let's explore the key details that truly determine the perfect pump for your needs.

How Do I Calculate Total Head for My System?

Confused by terms like "head"?

This simple calculation is the key to avoiding an underpowered pump.

It ensures you get consistent water pressure exactly where you need it.

Total Dynamic Head (TDH) is the total workload your pump must overcome. You can calculate it by adding the vertical lift (in feet), the pressure required at the destination (in feet), and the total friction loss from your pipes.

Simply choosing a pump based on a 20-foot lift is a common mistake.

The pump doesn't just lift water; it also has to push it against pressure and friction.

This combined resistance is the Total Dynamic Head (TDH), and it's the most critical number for sizing your pump correctly.

Getting this wrong means you either buy a pump that can't do the job or one that is wastefully oversized.

Understanding the Components of TDH

TDH is made up of three main parts.

First is the Vertical Lift (or static head).

This is the vertical distance from the water's surface to the highest point of discharge.

In our example, this is a straightforward 20 feet.

Second is the Pressure Head.

If you are pumping into a pressure tank, the tank's pressure adds a significant workload.

You must convert this pressure (PSI) into feet of head.

The formula is simple: 1 PSI = 2.31 feet of head.

A standard household pressure tank set to 40-60 PSI means your pump must overcome up to 60 PSI.

That adds 60 PSI x 2.31 = 138.6 feet of head to your calculation.

So, your total head is now 20 feet (lift) + 138.6 feet (pressure) = 158.6 feet, not just 20 feet.

Don't Forget Friction Loss

The third component is Friction Loss.

As water moves through pipes and fittings, it rubs against the inner walls, losing energy and pressure.

Longer pipe runs, smaller pipe diameters, and higher flow rates all increase friction loss dramatically.

For example, pushing 10 GPM through 100 feet of 1-inch PVC pipe creates about 2.2 PSI of friction loss, which is another 5 feet of head.

But pushing that same 10 GPM through a 1,000-foot pipe could add 50 feet of head.

Ignoring this can lead to a pump that delivers a trickle of water instead of a strong flow.

Always use a friction loss chart for your specific pipe size and material to get an accurate number.

How Many Gallons Per Minute (GPM) Does My Application Need?

Guessing your water flow needs can lead to daily frustration.

An undersized pump won't meet your demands.

Matching the GPM to your pump's capacity is crucial for satisfaction, whether for a home, farm, or livestock.

A typical American home needs 10-15 GPM to run multiple fixtures simultaneously. For irrigation or livestock, calculate your total GPM by adding up the flow rates of all sprinklers or troughs you plan to use at the same time.

After calculating your TDH, the next step is determining your required flow rate, measured in Gallons Per Minute (GPM).

This number represents the volume of water you need your pump to deliver.

This is not an average; it's your peak demand—the maximum amount of water you'll need at any one time.

Sizing for Residential Use

For a household, think about the busiest time of day.

Could a shower be running while the dishwasher is on and someone flushes a toilet?

You need to add the GPM of each fixture to find your peak demand.

A modern, efficient showerhead might use 2 GPM, a dishwasher 2-3 GPM, and a faucet 1-2 GPM.

Running all three requires 5-7 GPM.

A family of four is often sized for 10-15 GPM to ensure there are no pressure drops during peak use.

Sizing for Agricultural and Livestock Needs

For agriculture, the calculation is more direct.

If you have ten sprinklers that each use 2 GPM, your total demand is 10 x 2 = 20 GPM.

For livestock, the goal is to refill troughs faster than the animals can drink during peak times.

A single cow can drink up to 30 gallons per day, but it might drink 5 gallons in just a few minutes.

You must size the pump to handle that peak demand for the entire herd.

Matching GPM and TDH on a Pump Curve

Once you know your required TDH and GPM, you can select a pump.

Every pump has a "pump curve" chart.

The vertical Y-axis shows the head (TDH in feet), and the horizontal X-axis shows the flow rate (GPM).

You plot your required TDH and GPM on this chart.

The ideal pump is one where your point (e.g., 160 feet TDH at 10 GPM) falls within the middle 70% of the pump's performance curve.

This is the Best Efficiency Point (BEP), where the pump operates most effectively and has the longest lifespan.

Choosing a pump where your point is off the curve means it will either fail to deliver or run inefficiently and burn out quickly.

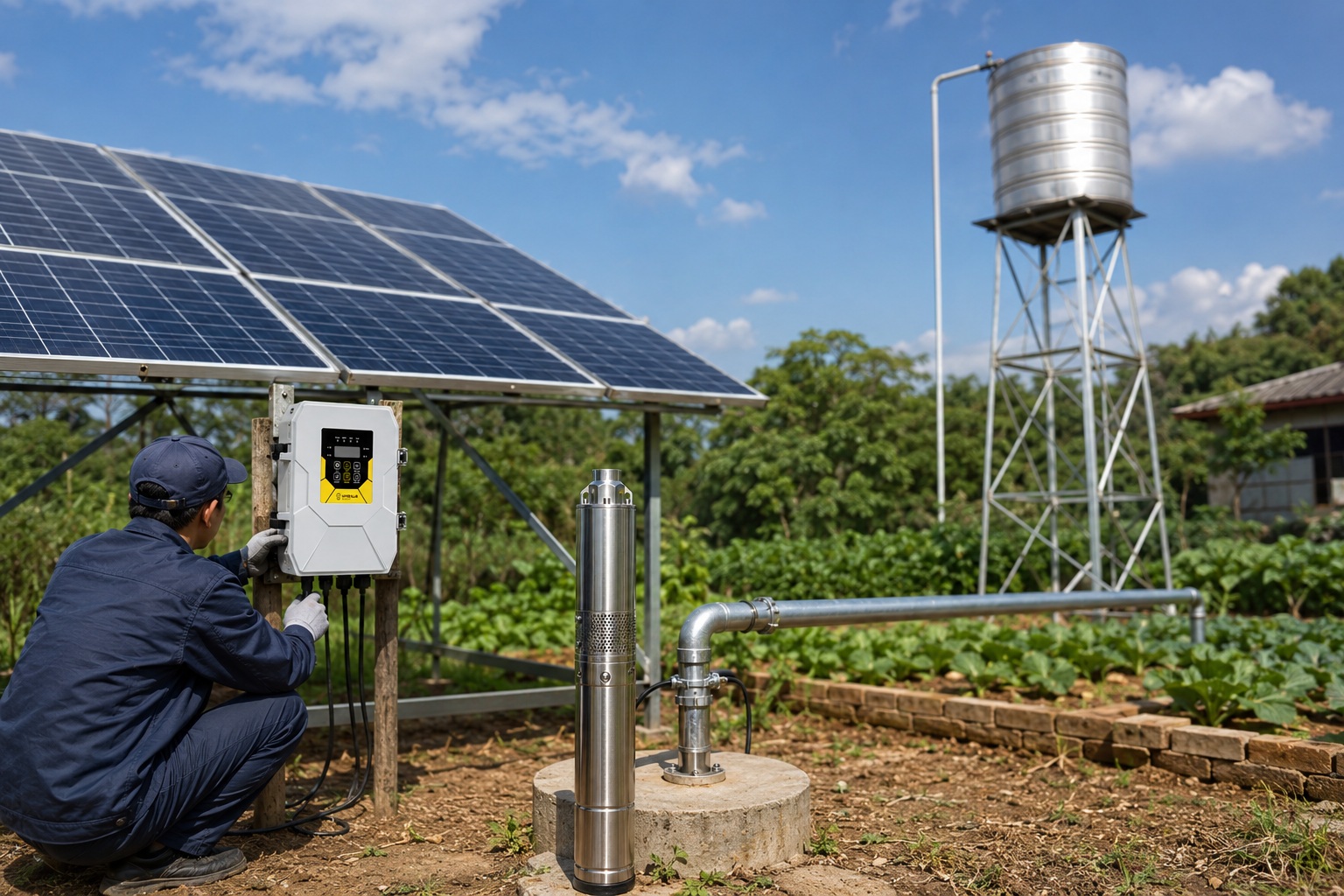

Which Type of Solar Pump is Best for a 20-Foot Lift?

With a shallow 20-foot lift, several pump types will work.

But which one offers the best long-term value, efficiency, and reliability for your specific water source and needs?

The answer depends on more than just lift.

For a shallow 20-foot lift from an open source like a pond, a surface booster pump can work. For wells, a solar submersible pump is far more efficient. The choice between screw, plastic, or stainless steel impellers then depends on your required flow rate and water quality.

While a 20-foot lift seems simple, choosing the right pump technology is critical for long-term success, especially with solar power.

The goal is to maximize water output using minimal energy.

Submersible pumps are generally over 25% more efficient than surface pumps because they push water instead of pulling it, avoiding the energy losses associated with suction lift.

Within the world of solar submersible pumps, three main types dominate the market, each designed for a specific purpose.

The Efficient Workhorse: Solar Screw Pumps

Solar screw pumps, also known as progressing cavity pumps, use a helical rotor (the screw) inside a rubber stator.

As the screw turns, it creates sealed cavities of water that are pushed upward.

This design is incredibly efficient at creating high pressure.

It's a low-flow, high-head pump.

While a 20-foot lift doesn't require high head, a screw pump excels if you have a long pipe run with high friction loss or need to pump to a high elevation point far from the well.

Its greatest advantage is sand resistance.

The rubber stator can flex to pass sand and sediment that would destroy other pumps, making it ideal for newly drilled or sandy wells.

The High-Volume Performer: Solar Plastic Impeller Pumps

These are multi-stage centrifugal pumps.

They use a series of stacked plastic impellers that spin at high speed, slinging water outward and upward from one stage to the next.

This design generates high flow rates at low-to-medium head.

For a 20-foot lift application requiring high GPM—like farm irrigation, filling a large pond, or supplying a large household—this is an excellent and cost-effective choice.

The engineered plastic impellers are highly wear-resistant against fine sand and sediment, offering a great balance of performance and durability for most water conditions.

The Premium Choice: Solar Stainless Steel Impeller Pumps

This pump operates on the same centrifugal principle as the plastic impeller model but uses impellers made from SS304 stainless steel.

The entire pump body is also stainless steel.

This makes it the ultimate choice for durability and longevity, especially in harsh water environments.

If your water has a low pH (acidic) or is high in minerals or salinity (corrosive), a stainless steel pump is a necessity.

It resists corrosion that would degrade and destroy a standard pump in months.

While the initial cost is higher, its service life can be over 25% longer in challenging water, making it a superior long-term investment for high-end homes, ranches, or regions with poor water quality.

What Is the "Engine" Driving Your Solar Pump?

The pump end—the part with the screw or impellers—is only half the story.

The motor is the heart of your entire water system.

Its efficiency directly impacts your initial costs and long-term reliability.

Modern solar pumps are powered by high-efficiency brushless DC (BLDC) permanent magnet motors. These advanced motors can exceed 90% efficiency, reducing the number of solar panels needed by up to 30% compared to older, less efficient motor types.

You can have the best pump in the world, but it's useless without an efficient and reliable motor to drive it.

In the solar pumping industry, the shift to Brushless DC (BLDC) permanent magnet motors has been a game-changer.

This technology is the core reason modern solar water systems are so effective and affordable.

The Power of Brushless DC (BLDC) Motors

Unlike traditional motors that use carbon brushes to conduct electricity, BLDC motors are electronically commutated.

This has several massive advantages.

First, there are no brushes to wear out, making the motor virtually maintenance-free with a significantly longer lifespan.

Second, they are incredibly efficient.

A typical BLDC motor converts over 90% of electrical energy into mechanical power.

Older DC or AC motors might only be 60-70% efficient.

This 20-30% efficiency gain means you need fewer solar panels to do the same amount of work, directly lowering your initial system cost.

These motors are also more compact and powerful for their size.

They are often up to 47% smaller and 39% lighter than traditional motors of equivalent power, making shipping cheaper and installation a one-person job.

Why Motor Efficiency Matters More Than Pump Type

When choosing a system, distributors and end-users often focus only on the pump's GPM and head rating.

However, a high-flow pump paired with an inefficient motor is a terrible investment.

It will require a larger, more expensive solar array and will deliver less water per watt of power.

The true value of a solar pumping system lies in its overall system efficiency.

A high-efficiency BLDC motor is the foundation of that value.

It saves money every single day by maximizing the amount of water pumped from every watt of solar energy produced.

This is the key to building a competitive advantage with a product portfolio that stands for efficiency, durability, and a rapid return on investment.

How Can I Ensure Water Access 24/7, Even on Cloudy Days?

Solar power is fantastic, but what happens on a rainy week or when you need water at night?

Relying solely on the sun can be a major risk for a home or critical livestock operation.

Fortunately, there is a modern solution that provides complete water security.

Hybrid AC/DC solar pump controllers solve the problem of intermittent solar power. They automatically and intelligently switch between solar power and a backup AC source, like the grid or a generator, ensuring you have reliable water whenever you need it, 24/7.

The single biggest concern for potential solar pump users is reliability.

"What if the sun doesn't shine?" is a valid question.

While batteries can store energy, they are expensive, complex, and require maintenance.

A far more elegant and cost-effective solution is a hybrid AC/DC controller.

This smart device acts as the brain of your water system, managing power sources to guarantee uninterrupted operation.

The Genius of Hybrid AC/DC Controllers

A hybrid controller has inputs for both DC power from your solar panels and AC power from the grid or a generator.

It is programmed to always prioritize solar power first to keep your energy costs at zero.

On a bright, sunny day, the pump runs 100% on free solar energy.

If clouds roll in and the solar voltage drops, the controller doesn't just shut off.

Instead, it seamlessly blends in just enough AC power to maintain the pump's speed and water flow.

This maximizes the use of every available watt of solar energy.

When the sun goes down, or if solar power is completely unavailable, the controller automatically switches to the AC source to run the pump at full speed.

This guarantees you have water for a late-night shower or to fill livestock troughs before dawn, providing complete peace of mind.

Comparing Power Options for Your Pump System

Choosing a power system is a balance of cost, complexity, and reliability.

A DC-only system is the simplest and has the lowest initial cost, but its operation is entirely dependent on the sun.

A hybrid AC/DC system offers unparalleled reliability for a small increase in initial cost, making it the superior choice for any critical application.

For distributors, offering a hybrid AC/DC solution transforms a solar pump from a niche product into a primary water supply system that can compete with any traditional grid-powered pump on reliability, while crushing it on operating cost.

Conclusion

Properly sizing a pump for a 20-foot lift means looking beyond horsepower.

Calculate your Total Dynamic Head and GPM, then select an efficient solar pump system with a BLDC motor.

FAQs

Can I use a bigger pump than I need?

No, oversizing a pump is not better. It causes rapid on-off cycling, which leads to premature motor burnout and wastes energy.

How deep should a submersible pump be placed?

Place it at least 10-20 feet below the lowest expected water level, but 5-10 feet off the well bottom to avoid sucking up sediment.

Do solar pumps work on cloudy days?

Yes, they work at a reduced flow rate. A hybrid AC/DC controller can supplement with grid power to maintain full performance on cloudy days.

How many solar panels do I need for a 1/2 HP pump?

Typically, you need 500 to 750 watts of solar panels. This usually means two or three modern panels, depending on their individual wattage.

What is the difference between a booster pump and a submersible pump?

A booster pump is installed on the surface to increase pressure in an existing line. A submersible pump is placed down in the water source to lift water out.

How long do solar water pumps last?

A quality system with a maintenance-free BLDC motor and a well-protected controller can have a service life of over 10 years.

What is a pump curve?

A pump curve is a graph that shows a pump's performance. It plots the flow rate (GPM) against the head pressure (TDH) to help you select the right pump.

Do I need a battery for my solar pump system?

No, batteries are not required. Most systems pump water into a storage tank during the day, which acts as a "water battery" for use at night.
