HYBSUN guides new energy, creates new live.

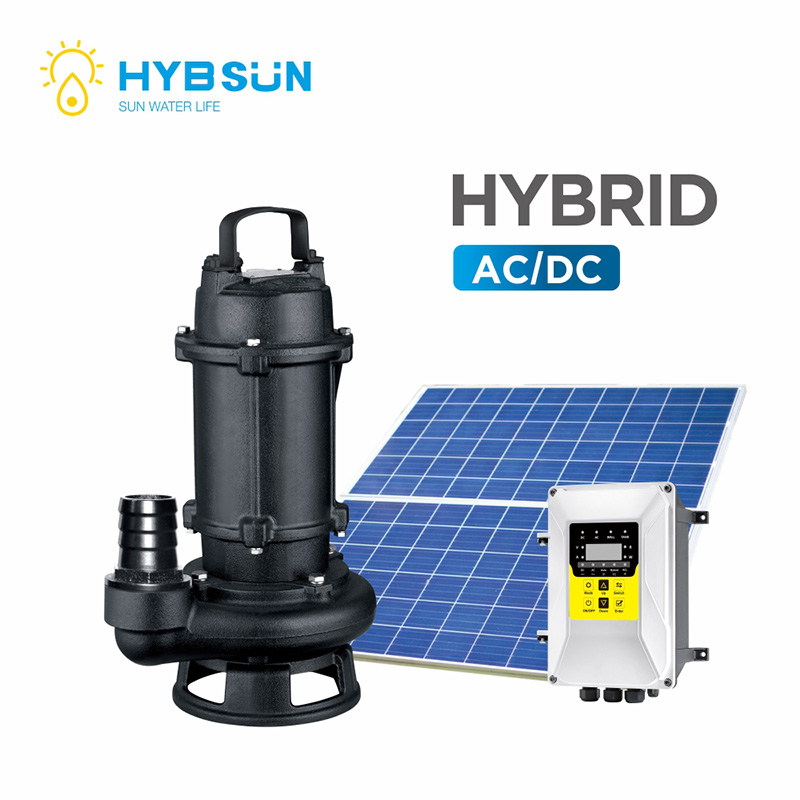

SWQ-H DC/AC SEWAGE PUMP
Efficient Waste Management with SWQ-H DC/AC Sewage Pump: Robust and Versatile
| Categories | SWQ-H DC/AC SEWAGE PUMP |
| Brand | HYBSUN Solar Water Pump Manufacturer |
| Model | SWQ-H AC DC Series |
| Material | iron |
| Type | Hybrid AC/DC SOLAR JET PUMP |
| Certificate | CE, ISO9001 |
| Warranty | 24 months |
| MOQ | 1 set |
| FOB port | Ningbo/Shanghai |
| Terms of Payment | L/C, T/T, Paypal |

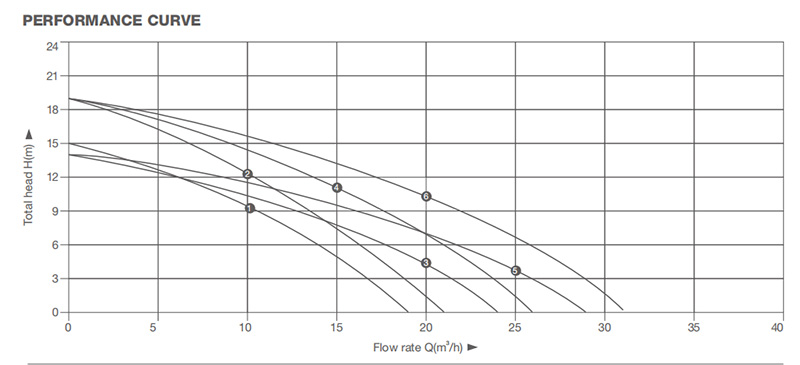

| Nos | Model | Power(W) | AC Vol (V) |
DC Vol (V) |
Best VMP (V) |
Q.Max (m3/h) |
H.Max(M) | Outlet(Inch) |
| 1 | SWQ-H750-15/19E | 750 | 90-300 | 90-430 | 110-430 | 19 | 15 | 2" |
| 2 | SWQ-H1100-19/21F | 1,100 | 90-300 | 90-430 | 150-430 | 21 | 19 | 2" |
| 3 | SWQ-H1300-14/24F | 1,300 | 90-300 | 90-430 | 150-430 | 24 | 14 | 2" |
| 4 | SWQ-H1300-19/26F | 1,300 | 90-300 | 90-430 | 150-430 | 26 | 19 | 2" |
| 5 | SWQ-H1500-14/29G | 1,500 | 90-300 | 90-430 | 200-430 | 29 | 14 | 2" |
| 6 | SWQ-H1500-19/31G | 1,500 | 90-300 | 90-430 | 200-430 | 31 | 19 | 2" |
Advantages
- ACDC Brushless Permanent-magnetic synchronous motor for solar power submersible water pump to get high speed and high efficiency.
- NSK bearing with alloy mechanical seal,offering the longer working life.
- Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
- MPPT function offers higher utilization rate of solar energy.
- Water proof and leak proof based on double water seal.
- Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
- Featured function:MPPT function,Soft start function,Dry running protection,Adjustable speed function, Error wiring protection,Over/under-voltage protection,Overload protection,Over-current protection, phase-loss protection,High working temperature protection

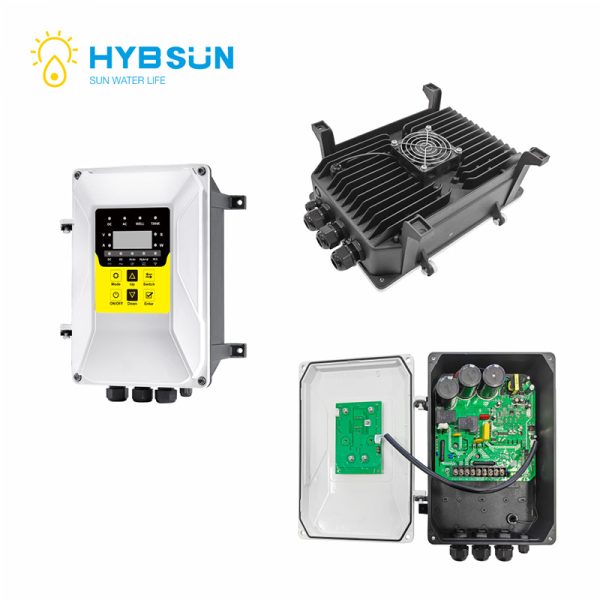

ADVANTAGES OF AC/DC CONTROLLER
HYBSUN SOLAR PUMP AC/DC CONTROLLER
- Suitable for 220V,3phase AC pump
- Suitable for 220V,single phase AC pump with capacitor
- Suitable for 220V,single phase AC pump without capacitor
- Suitable for BLDC speical voltage pump(110V,150V,220V,300V) 3" and 4"
- Child Lock-Anti stealing function
- Intelligent self cleaning function
- Wide working voltage:AC input:single phase 80-300V,DC input:90-430V
- Long distance pump automatice stop/start without float swicth-wirelessly
- Protection class: IP65
- GPRS remotely control pump stop/start by web/phone
How to Connect the Solar Water Pump
Working Environment and Electrical Property
| Controller Model | Adaptable Pump | Max. Input Current(A) | Max. Open Circuit Viltage(V) | MPPT Voltage Range(V) | Working Temperature(°C) |
| TGP-2-0.75 | Rated 110V-A/D pump | 17 | <430 | 110-400 | -75 |
| TGP-2-1.1 | Rated 150V-A/D pump | 17 | <430 | 150-400 | -75 |
| TGP-2-1.5 | Rated 200V-A/D pump | 17 | <430 | 200-400 | -75 |
| TGP-2-2.2 | Rated 300V-A/D pump | 17 | <430 | 300-400 | -75 |

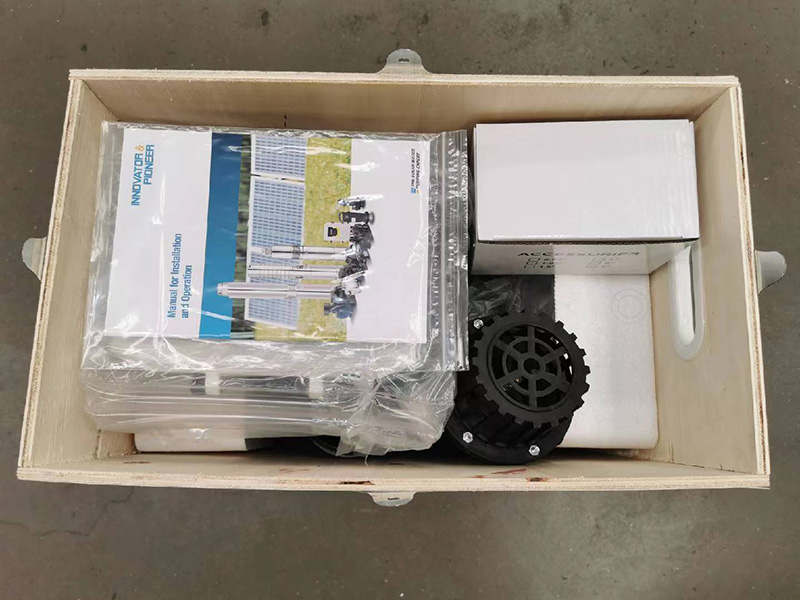

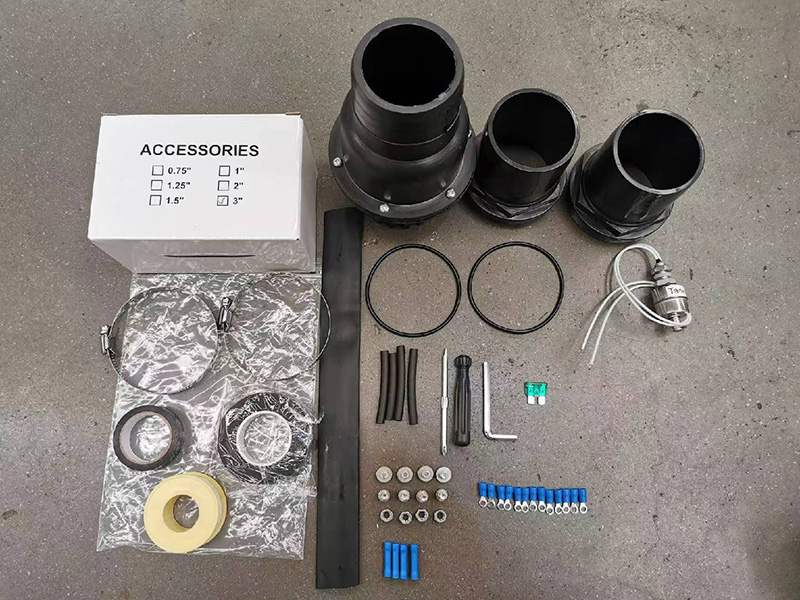

Accessories and Packaging Display
About after-service：
- We provide 2 years warranty for solar pumps and MPPT controllers.
- We will recommend the suitable solar panels for each solar pump.
- Any installation question, we will provide the connection diagram or installation video for your reference.
- Any installation question, we will provide the connection diagram or installation video for your reference.
About stock：
- We have stocks of hot-selling models, such as 3 inch, 4 inch pump with plastic or stainless steel impeller.
- If you become our long-term stable distributor, we will prepare your own brand of MPPT controller stock for you.
