Solar Centrifugal Surface Pump
Solar Powered Water Pump For Surface Centrifugal Pump For Agricultural Irrigation Pump Suppliers In China
| Categories： | Solar Centrifugal Surface Pump |
| Brand： | Hybsun Solar Water Pump Manufacturer |
| Model: | SCPM Series |
| Material: | iron |
| Type: | Solar Centrifugal Surface Pump |
| Certificate: | CE, ISO9001 |
| Warranty: | 2 year |
| MOQ: | 1 set |
| FOB port: | Ningbo/Shanghai |
| Terms of Payment: | L/C, T/T, Alipay |
| Nos | Model | Volatge(V) | Power(W) | VMP(V) | VOC(V) | Q.Max(m3/h) | H.Max(M) | Outlet(Inch) |
| 1 | SCPM550-25/6B | DC48 | 550 | 48-96 | <100 | 6.0 | 25 | 1"×1" |
| 2 | SCPM750-15/21C | DC72 | 750 | 72-144 | <150 | 21.0 | 15 | 2"×2" |
| 3 | SCPM1100-15/27C | DC72 | 1,100 | 72-144 | <150 | 27.0 | 15 | 2"×2" |
| 4 | SCPM1500-17/55E | DC110 | 1,500 | 110-192 | <200 | 55 | 17 | 3"×3" |
Advantages
- DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
- NSK bearing with alloy mechanical seal,offering the longer working life.
- MPPT function offers higher utilization rate of solar energy.
- Water proof and leak proof based on double water seal.
- Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
- Featured function:MPPT function,Soft start function,Dry running protection,Adjustable speed function, Error wiring protection, Over/under-voltage protection,Overload protection,Over-current protection, phase-loss protection,High working temperature protection
ADVANTAGES OF DC CONTROLLER
HYBSUN SOLAR PUMP CONTROLLER
- Waterproof grade: IP65
- Max. input current:15A
- MPPT function, the solar power utilization rate is higher.
- Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.
- LED displays the power, voltage, current, speed etc working condition.
- Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually. Automatically start and stop working.
- Water proof and leak-proof: Double seal effect.
- Soft start: No impulse current, protect the pump motor.
- High voltage/Low voltage/Over-current/High temperature protection.
How to Connect the Solar Water Pump
Working Environment and Electrical Property
| Controller Model | Adaptable Pump | Max. Input Current(A) | Max. Open Circuit Viltage(V) | MPPT Voltage Range(V) | Working Temperature(°C) |
| DC24 | Rated 24V pump | 17 | <55 | 24-48 | -75 |
| DC48 | Rated 48V pump | 17 | <105 | 48-96 | -75 |
| DC72 | Rated 72V pump | 17 | <160 | 72-144 | -75 |
| DC96 | Rated 96V pump | 17 | <210 | 96-192 | -75 |
| DC110 | Rated 110V pump | 17 | <210 | 110-192 | -75 |

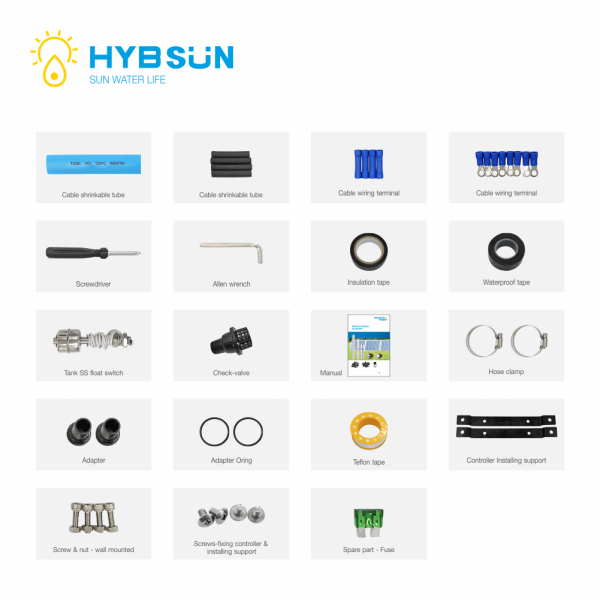

Accessories and Packaging Display
