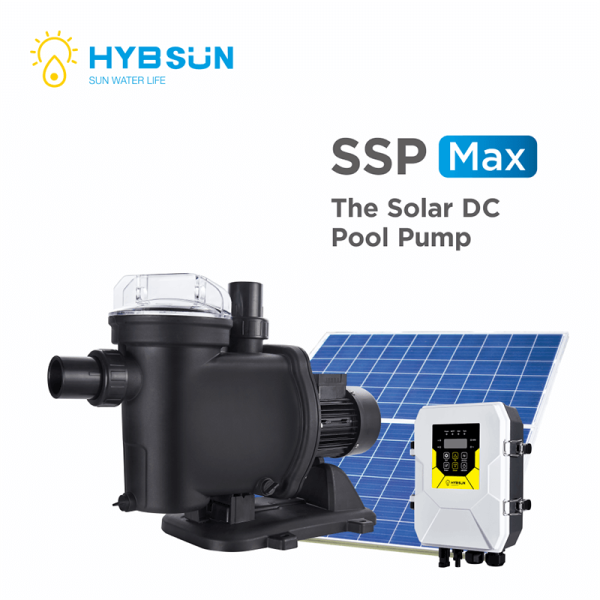

DC SSP Solar Water Pump For Swimming Pool

Solar Powered Water Pump For Swimming Pool Surface Centrifugal Pump For Agricultural Irrigation Pump Suppliers In China

Categories: Solar Swimming Pool Pump
Brand: Hybsun Solar Water Pump Manufacturer
Model: SSP Series
Material: iron
Type: Solar Swimming Pool Pump
Certificate: CE, ISO9001
Warranty: 2 year
MOQ: 1 set
FOB port: Ningbo/Shanghai
Terms of Payment:  L/C, T/T, Alipay

GET A FREE QUOTE NOW

Contact Form Demo (#3)
Nos Model Volatge(V) Power(W) VMP(V) VOC(V) Q.Max(m3/h) H.Max(M) Outlet(Inch)
1 SSP500-15/17B DC48 500 48-96 <100 17 15 2″×2″
2 SSP500-15/17C DC72 500 72-144 <150 17 15 2″×2″
3 SSP900-19/21C DC72 900 72-144 <150 21 19 2″×2″
4 SSP1200-19/31C DC72 1,200 72-144 <150 31 19 2″×2″
5 SSP1200-19/31D DC96 1,200 96-192 <200 31 19 2″×2″

DC SSP Solar Water Pump For Swimming Pool

Advantages

  1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
  2. NSK bearing with alloy mechanical seal,offering the longer working life.
  3. MPPT function offers higher utilization rate of solar energy.
  4. Water proof and leak proof based on double water seal.
  5. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
  6. Featured function: MPPT function,Soft start function,Dry running protection,Adjustable speed function, Error wiring protection,Over/under-voltage protection,Overload protection,Over-current protection, phase-loss protection,High working temperature protection

ADVANTAGES OF DC CONTROLLER

HYBSUN SOLAR PUMP CONTROLLER

Waterproof grade: IP65

Max. input current: 15A

MPPT function, the solar power utilization rate is higher.

Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.

LED displays the power, voltage, current, speed etc working condition.

Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually. Automatically start and stop working.

Water proof and leak-proof: Double seal effect.

Soft start: No impulse current, protect the pump motor.

High voltage/Low voltage/Over-current/High temperature protection.

SSP series solar swimming pool pump controller pictures

How to Connect the Solar Water Pump

SSP series solar swimming pool pump wiring diagram

Working Environment and Electrical Property

Controller Model Adaptable Pump Max. Input Current(A) Max. Open Circuit Viltage(V) MPPT Voltage Range(V) Working Temperature(°C)
DC24 Rated 24V pump 17 <55 24-48 -75
DC48 Rated 48V pump 17 <105 48-96 -75
DC72 Rated 72V pump 17 <160 72-144 -75
DC96 Rated 96V pump 17 <210 96-192 -75
DC110 Rated 110V pump 17 <210 110-192 -75

Accessories and Packaging Display

SSP series solar swimming pool pump accessories kit SSP series solar swimming pool pump wooden box packing DC SSP Solar Water Pump For Swimming Pool (1)
