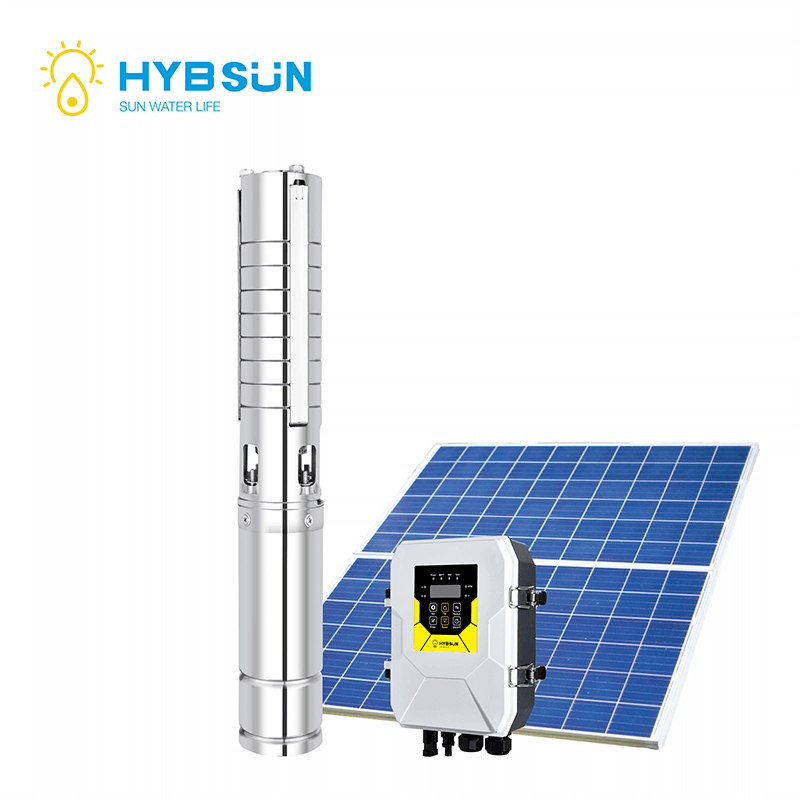

3 Inch Solar Well Pump with Stainless Steel Impeller

3 Inch Solar Deep Well Submersible Pump With Stainless Steel Impeller DC Brushless Motor Pump Kit

Categories: 3 Inch Solar Well Pump with Stainless Steel Impeller
Brand: Hybsun Solar Water Pump Manufacturer
Model: 3US Series
Material: Stainless steel
Type: 3 Inch Solar Well Pump with Stainless Steel Impeller
Certificate: CE, ISO9001
Warranty: 2 year
MOQ: 1 set
FOB port: Ningbo/Shanghai
Terms of Payment:  L/C, T/T, Alipay

GET A FREE QUOTE NOW

Contact Form Demo (#3)
Nos Model Volatge(V) Power(W) VMP(V) VOC(V) Q.Max(m3/h) H.Max(M) Outlet(Inch)
1 3US300-35/4A DC24 300 24-48 <55 4 35 1.25″
2 3US400-50/4B DC48 400 48-96 <105 4 50 1.25″
3 3US600-80/4.5B DC48 600 48-96 <105 4.5 80 1.25″
4 3US600-80/4.5C DC72 600 72-144 <160 4.5 80 1.25″
5 3US750-95/4.5C DC72 750 72-144 <160 4.5 95 1.25″
6 3US1100-112/4.5D DC96 1100 96-192 <210 4.5 112 1.25″
7 3US1100-112/4.5E DC110 1100 110-192 <210 4.5 112 1.25″
8 3US1300-120/4.5D DC96 1300 96-192 <210 4.5 120 1.25″
9 3US1300-120/4.5E DC110 1300 110-192 <210 4.5 120 1.25″
10 3US1500-135/4.5E DC110 1500 110-192 <210 4.5 135 1.25″

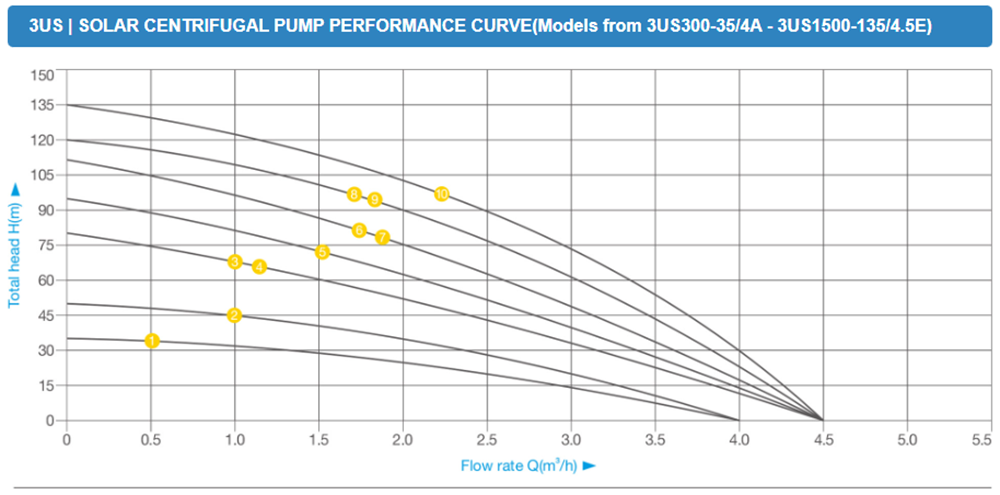

3 Inch Solar Well Pump with Stainless Steel Impeller (1)

Nos Model Volatge(V) Power(W) VMP(V) VOC(V) Q.Max(m3/h) H.Max(M) Outlet(Inch)
1 3US600-44/6B DC48 600 48-96 <105 6 44 1.25″
2 3US600-44/6C DC72 600 72-144 <160 6 44 1.25″
3 3US750-60/6C DC72 750 72-144 <160 6 60 1.25″
4 3US1100-80/6D DC96 1100 96-192 <210 6 80 1.25″
5 3US1100-80/6E DC110 1100 110-192 <210 6 80 1.25″
6 3US1500-95/6E DC110 1500 110-192 <210 6 95 1.25″

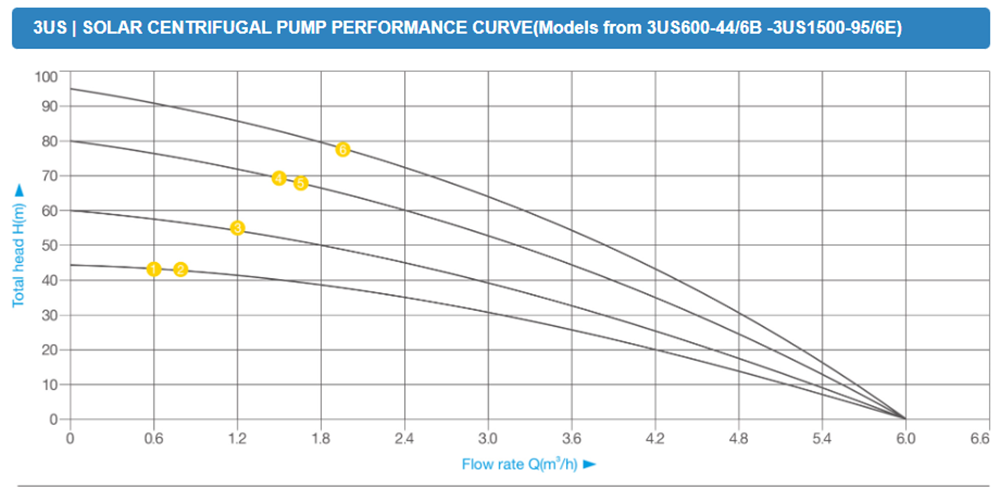

3 Inch Solar Well Pump with Stainless Steel Impeller (2)3 Inch Solar Well Pump with Stainless Steel Impeller (2)

Advantages

  1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
  2. NSK bearing with alloy mechanical seal,offering the longer working life.
  3. MPPT function offers higher utilization rate of solar energy.
  4. Water proof and leak proof based on double water seal.
  5. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
  6. Featured function:MPPT function,Soft start function,Dry running protection,Adjustable speed function, Error wiring protection,Over/under-voltage protection,Overload protection,Over-current protection, phase-loss protection,High working temperature protection

ADVANTAGES OF DC CONTROLLER

HYBSUN SOLAR PUMP CONTROLLER

Waterproof grade: IP65

Max. input current:15A

MPPT function, the solar power utilization rate is higher.

Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.

LED displays the power, voltage, current, speed etc working condition.

Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also can change the speed of pump manually. Automatically start and stop working.

Water proof and leak-proof: Double seal effect.

Soft start: No impulse current, protect the pump motor.

High voltage/Low voltage/Over-current/High temperature protection.

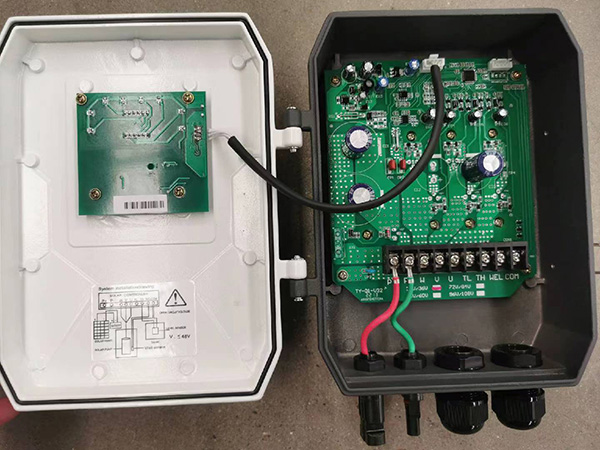

3US series solar stainless steel impeller deep well pump controller pictures

How to Connect the Solar Water Pump

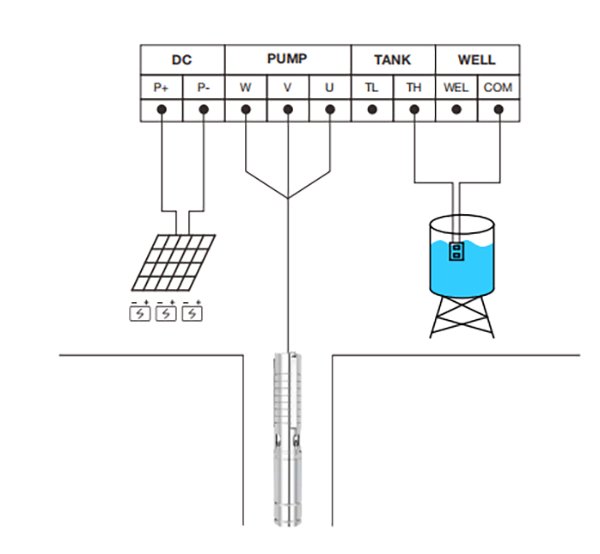

3US series solar stainless steel impeller deep well pump wiring diagram

Working Environment and Electrical Property

Controller Model Adaptable Pump Max. Input Current(A) Max. Open Circuit Viltage(V) MPPT Voltage Range(V) Working Temperature(°C)
DC24 Rated 24V pump 17 <55 24-48 -75
DC48 Rated 48V pump 17 <105 48-96 -75
DC72 Rated 72V pump 17 <160 72-144 -75
DC96 Rated 96V pump 17 <210 96-192 -75
DC110 Rated 110V pump 17 <210 110-192 -75

Accessories and Packaging Display

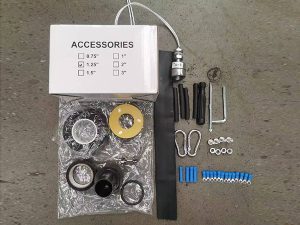

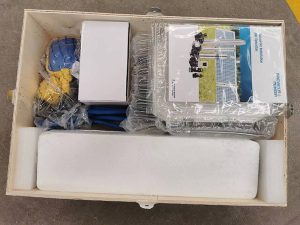

3US series solar stainless steel impeller deep well pump accessories kit 3US series solar stainless steel impeller deep well pump wooden box packing3HR DC Solar Well Screw Pump (6)

About after-service

  1. We provide 2 years warranty for solar pumps and MPPT controllers.
  2. We will recommend the suitable solar panels for each solar pump.
  3. Any installation question, we will provide the connection diagram or installation video for your reference.
  4. Any installation question, we will provide the connection diagram or installation video for your reference. About stock:
  5. We have stocks of hot-selling models, such as 3 inch, 4 inch pump with plastic or stainless steel impeller.
  6. If you become our long-term stable distributor, we will prepare your own brand of MPPT controller stock for you.
