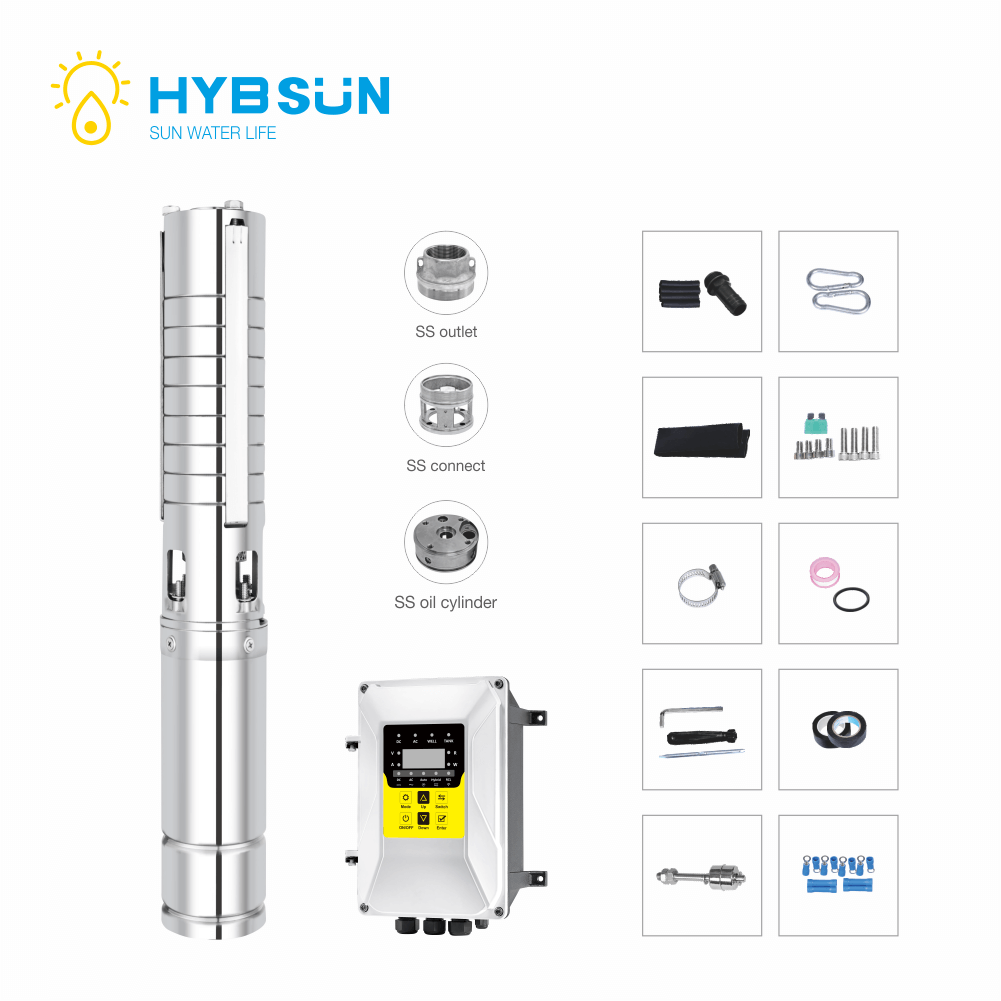

3 Inch ACDC Deep Well Solar Water Pump

Best Deep Well Solar Powered Water Pumping Machine | AC DC 3 Inch Output |Garden Irrigation Agriculture |Manufacturer OEM/ODM

Categories 3 Inch ACDC Deep Well Solar Water Pump
Brand HYBSUN Solar Water Pump Manufacturer
Model 3USH- AC DC Series
Material Stainless steel
Type 3 Inch Solar Well Pump with Stainless steel Impeller
Certificate CE, ISO9001
Warranty 24 months
MOQ 1 set
FOB port Ningbo/Shanghai
Terms of Payment L/C, T/T, Paypal

GET A FREE QUOTE NOW

Contact Form Demo (#3)

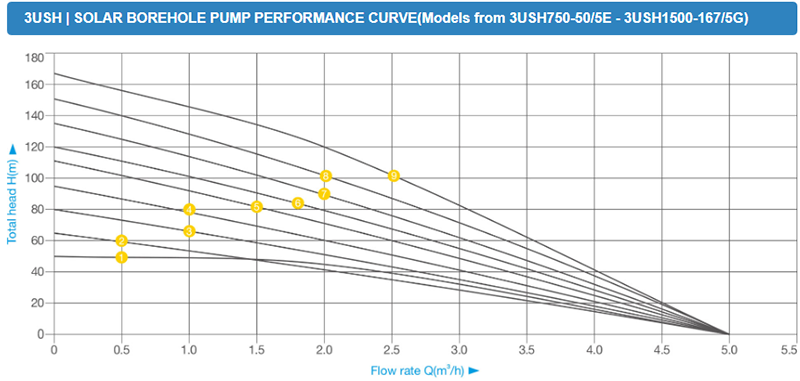

Nos Model Power(W) AC Vol
(V)
DC Vol
(V)
Best VMP
(V)
Q.Rated
(m3/h)
Q.Max
(m3/h)
H.Rated
(m)
H.Max(M) Outlet(Inch)
1 3USH750-50/5E 750 90-300 90-430 110-430 2 5 45 50 1.25″
2 3USH750-65/5E 750 90-300 90-430 110-430 2 5 55 65 1.25″
3 3USH900-80/5E 900 90-300 90-430 110-430 2 5 60 80 1.25″
4 3USH900-95/5E 900 90-300 90-430 110-430 2 5 65 95 1.25″
5 3USH1100-112/5F 1100 90-300 90-430 150-430 2 5 85 112 1.25″
6 3USH1300-120/5F 1300 90-300 90-430 150-430 2 5 95 120 1.25″
7 3USH1500-135/5G 1500 90-300 90-430 200-430 2 5 105 135 1.25″
8 3USH1500-151/5G 1500 90-300 90-430 200-430 2 5 115 151 1.25″
9 3USH1500-167/5G 1500 90-300 90-430 200-430 2 5 120 167 1.25″

3 Inch ACDC Deep Well Solar Water Pump

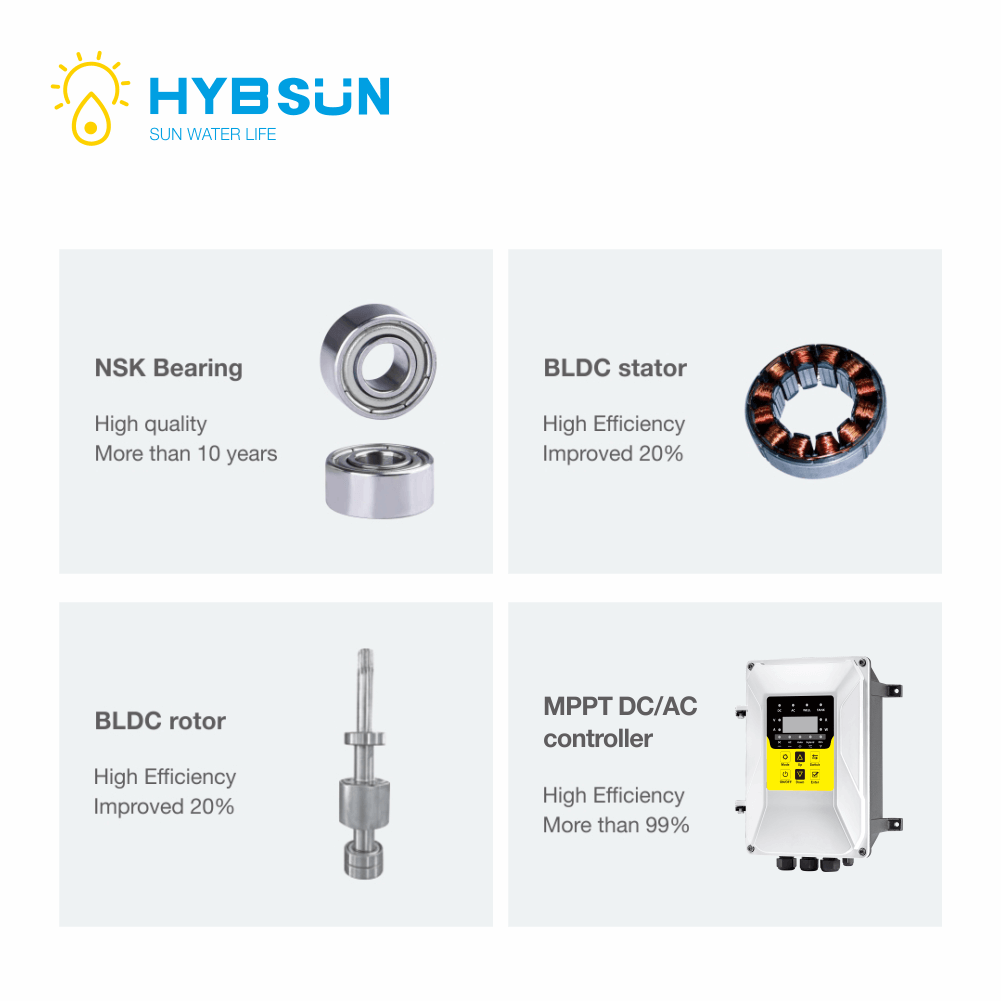

Advantages

  1. ACDC Brushless Permanent-magnetic synchronous motor for solar power submersible water pump to get high speed and high efficiency.
  2. NSK bearing with alloy mechanical seal,offering the longer working life.
  3. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
  4. MPPT function offers higher utilization rate of solar energy.
  5. Water proof and leak proof based on double water seal.
  6. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
  7. Featured function:MPPT function,Soft start function,Dry running protection,Adjustable speed function, Error wiring protection,Over/under-voltage protection,Overload protection,Over-current protection, phase-loss protection,High working temperature protection

ADVANTAGES OF AC/DC CONTROLLER

HYBSUN SOLAR PUMP AC/DC CONTROLLER

  1. Suitable for 220V,3phase AC pump
  2. Suitable for 220V,single phase AC pump with capacitor
  3. Suitable for 220V,single phase AC pump without capacitor
  4. Suitable for BLDC speical voltage pump(110V,150V,220V,300V) 3″ and 4″
  5. Child Lock-Anti stealing function
  6. Intelligent self cleaning function
  7. Wide working voltage:AC input:single phase 80-300V,DC input:90-430V
  8. Long distance pump automatice stop/start without float swicth-wirelessly
  9. Protection class: IP65
  10. GPRS remotely control pump stop/start by web/phone

3 Inch ACDC Deep Well Solar Water Pump (3)

How to Connect the Solar Water Pump

3 inch plastic impeller pump hybrid ACDC controller wiring diagram

Working Environment and Electrical Property

Controller Model Adaptable Pump Max. Input Current(A) Max. Open Circuit Viltage(V) MPPT Voltage Range(V) Working Temperature(°C)
TGP-2-0.75 Rated 110V-A/D pump 17 <430 110-400 -75
TGP-2-1.1 Rated 150V-A/D pump 17 <430 150-400 -75
TGP-2-1.5 Rated 200V-A/D pump 17 <430 200-400 -75
TGP-2-2.2 Rated 300V-A/D pump 17 <430 300-400 -75

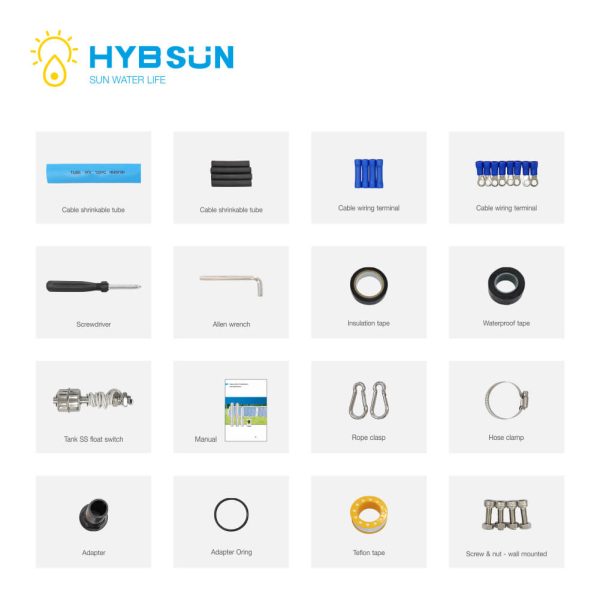

Accessories and Packaging Display

3 Inch Plastic Impeller Pump Hybrid ACDC Water Pump Free Parts Display 3 Inch Plastic Impeller Pump hybrid ACDC Water Pump Package 3 inch Plastic Impeller Pump Hybrid ACDC Controller Package Internal Display
